Hp 5328A universal/frequency counter - hewlett packard

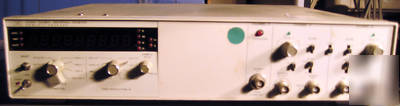

HP 5328A UNIVERSAL/FREQUENCY COUNTER - HEWLETT PACKARD
Product Details:The HP / Agilent 5328A is a 9-digit, programmable Universal Counter suitable for benchtop and system automation. Option flexibility makes matching units to system requirements easy. Standard measurements include frequency A, period A, period average A, time interval A to B, time interval average A to B, ratio B/A, and frequency C. Option 010 adds a high stability time base. Option 031 adds a 1.3 GHz C-channel. Option 020 adds a digital voltmeter.
ATTENUATION X10 SELECTABLE, CHA & B
FREQUENCY RANGE, ADDITIONAL - OPT 030, 512 MHZ; OPT 031, 1.3GHZ
INPUT IMPEDANCE - 50 OHM /1 MEGOHM (CHA & B), 50 OHM - CHC
INPUT SENSITIVITY CHA & B, 25 MV RMS TO 40MHZ, 50 MVRMS TO 100 MHZ
INPUT SENSITIVITY CONTINUED - OPTS 030/031, 15/20 MV RMS TO 512MHZ/1.3GHZ
MEASUREMENT MODES FREQ A, PER A, PER AVG A, RATIO B/A, TI A-B
MODES OF OPERATION, CONTINUED - TI AVG A-B,TATIO C/A,FREQ C,DVM, START/STOP A
NUMBER OF CHANNELS 2, 3 - W/OPT 030
RELATED ITEMS - 5328B, 5334A, 5335A
TIMEBASE AGING RATE - 3X10E-7/MO
TIMEBASE AGING RATE FOR OPTIONS OPT 010, 5X10E-10/DAY
