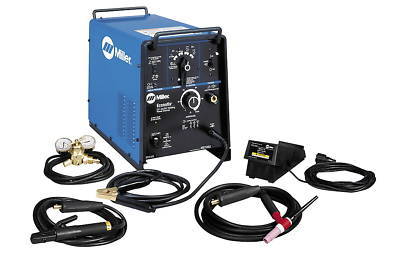

Miller econotig ac/dc tig stick welder 903367
Patented technology and Miller's vast experience in power source design come together in a truly affordable and effective TIG package. The Econotig is a full-featured machine that brings you capabilities which were previously available only with heavy-duty industrial TIG equipment.
The Econotig is an excellent choice for novice users and hobbyists, but don't underestimate this machine's power. It has the strength and stamina to handle a wide variety of light-industrial welding tasks. Yet it operates off single-phase power.
The Econotig is a complete AC/DC, TIG and Stick welding package. All you need is a bottle of shielding gas and some Stick electrodes and you're ready to start welding. It's ideal for farmers, ranchers, hobbyists, moon lighters - anyone who requires the versatility to handle Stick work, plus the finesse available only from the TIG process.
In the TIG mode, the Econotig offers superior performance: 18 gauge to 3/16" ( 1.2 to 4.8 mm ) steel and stainless steel; 14 gauge to 3/16" ( 1.8 to 4.8 mm ) aluminum. For thicker metals, take advantage of the Stick mode using 3/32" and 1/8" ( 2.4 and 3.2 mm ) electrodes.
If you thought a full-featured TIG machine like this was beyond your reach, think again. Take a look at the Econotig from Miller Electric. It just might be the answer you've been looking for.
* Upgraded circuitry gives you finer TIG output adjustment with the remote foot or fingertip control. If you need more output while using the remote control, simply increase the setting of the front panel amperage control.
* AC output for superior aluminum welding.
* DC output for mild and stainless steel.
* Four-position polarity and range selector switch offers two AC current ranges, DC electrode (-) for TIG, and DC electrode(+) for STICK.
* Built-in arc assist starter for DC TIG.
* Built-in arc assist stabilizer for AC TIG on aluminum.
* Process switch automatically sets machine for TIG or Stick.
* Unique "flow-through" shielding gas TIG torch connection allows removal of torch without tools.
* Preset automatic postflow timer protects tungsten tip, workpiece and torch.
* Automatic high-temperature shutdown.
* Arc Assist - By using a high voltage assist, that jump starts the arc when the welder brings the tungsten electrode close to the work. You can eliminate a high frequency start. Arc assist also helps stabilize the arc while welding.
* Post Flow Cooling Circuit - Protection to extend the life of consumables and the welding torch is enhanced by our post flow circuit that provides shielding gas after you release the trigger.
* Power source with primary cord (plug provided on 230 volt model).
* DB1712RDI quick-connect TIG torch with backcap, ceramic gas cup, 3/32 in (2.4 mm) collet, collet body and 2% thoriated tungsten.
* 12-1/2 ft (3.7 m) work cable and clamp.
* 15 ft (4.6 m) Stick electrode holder.
* 20 ft (6 m) RFCS-14 foot-operated remote control.
* Gas regulator, flowmeter and 12-1/2 ft (3.7 m) shielding gas hose.
* "How-To" DVD (in English and Spanish).
