Marconi 2945A commumication service monitor w/case
The IFR/Marconi 2945A Communications Service Monitor is the lightest, most rugged service monitor available with a full performance spectrum analyzer as standard. For field work the 2945A provides an excellent combination of instruments for all types of maintenance work. In the workshop, it provides all of the performance you would expect for exacting measurements.
At under 12 kg (25 Ib), the 2945A lightens the load to remote sites. The shape of the 2945A is ideal for carrying. The side handle ensures that the instrument is clear of the stairs when ascending buildings and the depth is suitable for the 2945A to be operated comfortably when it is placed on the floor.
Full span spectrum analyzer with 'live' look and listen
Tracking generator with full offset tracking
Accurate power measurement to 150 W
5 W protection on all RF ports as standard
Super-fast LCD with rapid refresh rate for easy monitoring and real time adjustment
50 kHz DSO (Digital Storage Oscilloscope) with anti-aliasing
Transient and Harmonic analysis

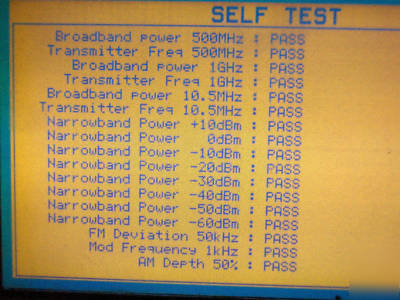

This unit passes all self test functions when packed on Jan 17, 2010 as seen in the pics, However the unit will need to be calibrated and the calibration is NOT guaranteed. Calibration can be had for about $500 USD from this company here:
http:// /products/5991
Full Data and Spec Sheet is available here:
http:// /specs/Marconi_2945A-02-04.PDF

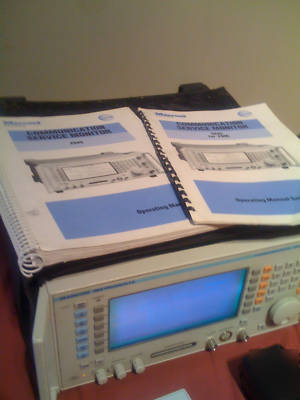

Supplementary Instruction Manual

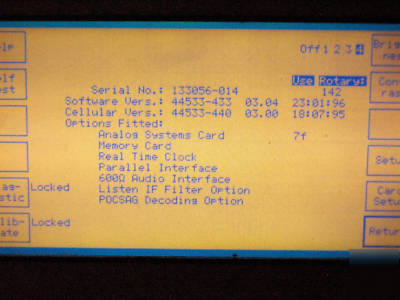

Options included installed in 2945 can be seen in the pics and listed as follows:
Software Version: 44533-433 03.04 23:01:96
Cellular Version: 44533-440 03.00 18:07:95
If you have any questions or concerns, feel free to contact me and I will respond promptly.
