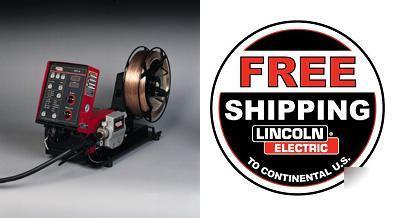

Lincoln electric stt-10 bench model wire feeder K1560-2
Lincoln Electric STT-10 Bench Model Wire Feeder
The sophisticated STT-10 Process Controller was designed specifically to work with the revolutionary STT II power source. Its microprocessor controls make the STT-10 easy to develop optimal procedures and set the range of operator adjustments. The STT-10 takes an active role in controlling the power source with a dual procedure control that can increase or decrease the energy in the arc without changing the wire feed speed.
Presettable background and peak current settings for optimum starting performance.
Split wire guide and four drive rolls for positive feeding.
Modular design for many mounting options.
Range control keeps procedures in the "sweet spot".
Four step trigger for "cruise control" on long welds and hard automation.
Three-year warranty on parts and labor.
Dimensions (in): 16 H x 15 W x 31 D
Input: 42 VAC, 50/60 Hz, 4 Amps
Wire Speed: 35-500 rpm, 0.8-12.7 m/min
