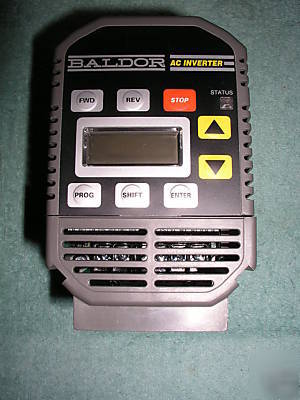

Baldor ID101F50-e ac motor inverter controller
* Input: Volts = 115 (+- 10%) VAC, 50/60Hz, 1-PH, 4.5 Amps, 0.5 KVA
* Output (Cont.): 0.5 Hp, 3.5-230 Volts, 2.2 Amps, 0.9 KVA
* Output Frequency: 0.1 to 400 Hz
* Control Method: Voltage Vector PWM
* Frequency Resolution: 0.05Hz
* V/Hz Ratio: 0.24 - 8.85 (230VAC), 0.48 - 17.69 (460VAC)
* Output Transistor Type: IGBT (Insulated Gate Bipolar Transistor)
* Transistor Rise Time: 2500Volts/sec (dv/dt)
* Torque Boost: Standard (automatic adjustment to load), Manual (0-15% of input voltage)
* Volts/Hertz Pattern: Linear to Squared Reduced (in 6 patterns)
* Accel/Decel Time: 0.1 to 600 seconds (for 2 assignable)
* Base Frequency: 26 to 960 Hz
* Dynamic Brake Torque: Up to 60% for 6 seconds
* Auto Restart: Manual or Automatic
* Min. Output Frequency: 0.1 to 400Hz
* Max. Output Frequency: 20 to 400Hz
* Slip Compensation: 0 to 12%
* Opto Input Impedance: 4.5 k Ohms
* Ambient Temperature: 0 C to 40 C (Maximum without derating)
* Humidity: 90% Maximum RH non-condensing
* Altitude: 3300 Ft. (Maximum without derating)
* Frequency Setting: Keypad, 0-5VDC, 0-10VDC, 0-20mA
* Frequency Setting Pot.: 5k Ohm, 0.5 Watt
* Operating Modes: Keypad, 2 Wire, 3 Wire, Preset Speeds, Electronic Potentiometer
* Agency Listings: UL and cUL Listed
* Display: Custom Backlit LCD, Keypad: 8 Key with Tactile Feel, Functions: Output Status Monitoring, Digital Speed Control, Parameter Setting and Display and Fault Log Display, LED Indicators: Red/Green for Status
* Analog Outputs: 1 Assignable, Full Scale Range: 0 to 10VDC Maximum, Output Conditions: 3 conditions plus calibration (see Analog Output Table)
* Relay Outputs: 1 Assignable, Rated Voltage: 115VAC, Rated Current: 1 Ampere Maximum, Conditions: 10 conditions (see Relay Output Table)
* Fault Conditions: Automatic Shutdown: 15 conditions (see Fault Code Table)

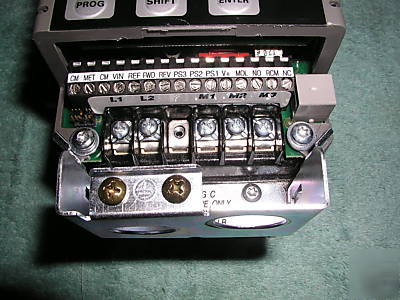

These came in a lot of spare parts so they may have a couple cosmetic marks on the body but the keypad/display are like new, all of the terminal screws are present and like new, the terminal guard is included and these are clean inside/out.
