Atten ADS1042C ADS1042 digital oscilloscope 40MHZ

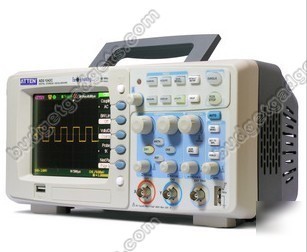

ATTEN ADS1042C Digital Storage Oscilloscope 40MHz
The most powerful homemade digital oscilloscope at present, the perfect combo with top performance and powerful function, which represent the highest level presently available in homemade digital storage oscilloscopes.
ADS1000 series digital storage oscilloscopes combine mature and steady hardware configuration, high-powered digital signal processing technology and functionality concepts with a mainstream display interface and the operation panel. In our design we did not attempt to match the specifications and usability of other comparable products currently on the market, but rather to exceed them in every respect, often outperforming same level products internationally.
The ADS1000 series, with its intuitive logical and convenient user interface and attractive price is very affordable.
* Dual channel - channel bandwidth: 25MHz - 100MHz
* The volume exquisite and it is convenient for carrying
* Use Colored TFT LCD, the waveform display is clearer and stable
* The real time sampling rate is 500MSa/
* Memory depth of ADS1000C is 4K and that of ADS1000CA is 2M
* Trigger Modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes
* Front and Back USB Host/Device, GPIB
* Waveform recorder function
* Thirty two parameters Auto measure function
* Cursor measure covers Manual mode, Track mode and Auto mode
* Channel waveform and it's FFT waveform display on split screen
* Pop-up Menu display pattern is more convenient for users using it
* Multiple Language User Interface
* Support multilingual online help
The Common Specifications Of All ADS1000 Series Products
12 divides full screen display
Edge, Pulse, Video, Slope, Alternative, Delay
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Window: Hanning, Hamming, Blackman, Rectangular
Support the sampling rate : 5KSa/s-200MSa/s (in a 1-2-5 sequence)
Off, 1sec, 2sec, 5sec, Infinite
Main, Window, Window Zoom, Roll, X-Y
2Sec, 5Sec, 10Sec, 20Sec, Infinite
Classical, Modern, Tradition, Succinct
Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean
100-240VAC, 47HZ-440HZ, 50VA Max
305mm x 154mm x133mm, about2.3kg
Support USB flash drive storage
Support PictBridge compatible printers and PC Remote control RS-232
* Easy Scope Computer Software System
