Tektronix THS720P HANDHELD100MHZ oscilloscope very nice


Please ask any questions that you may have.

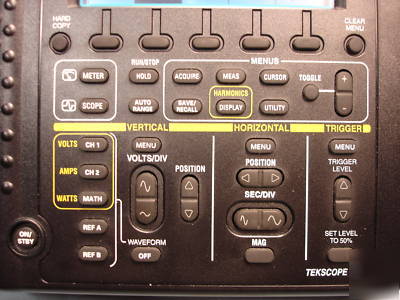

Tektronix THS720P POWERSCOUT; 100MHZ HANDHELD DRT SCOPE/ DMM

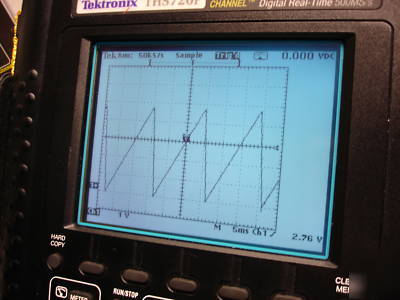

The Tektronix THS720P oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix THS720P oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

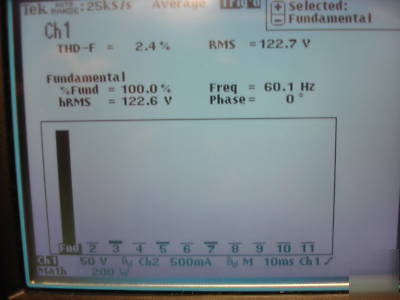

Total harmonic distortion as a percentage of the fundamental THD-F
Total harmonic distortion of the RMS of the input signal THD-R

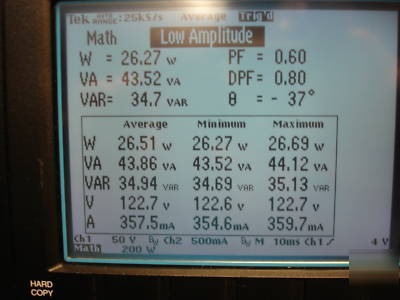

Phase difference between the voltage and current PHI
Performance Characteristics of the THS720P
Programmability/Connectivity of the THS720P
