Stellex yig oscillator + synthesizer + cable 8-10 ghz

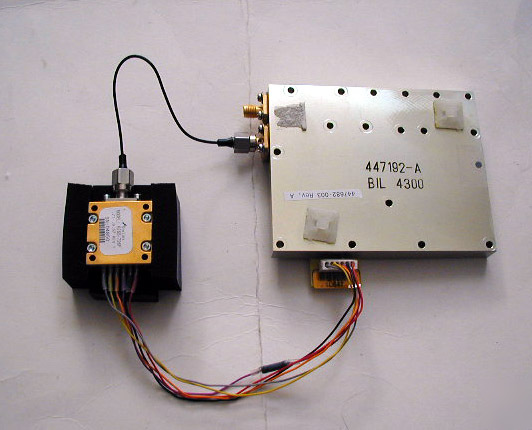

STELLEX YIG OSCILLATOR + Synthesizer + Cable 8-10 GHz Tunable
The YIG and PLL board combine to give you a signal from just over 8GHz to about 10.2GHz with a level of around +13dBm. The PLL controller contains a 10MHz reference and allows the YIG output to be set in precise steps of 1MHz across the 8 to 10GHz range. This makes it ideal as the Local Oscillator for a ham 3cm band transverter with an IF of 70cm/432MHz, which can then tune anywhere across the 10GHz to 10.5GHz band.
Please see the excellent work that has been done by John Miles, KE5FX, his web page describes his work at
"http:// /ke5fx/stellex.htm"
He has generously made his his code and documentation available for download at: "http:// /ke5fx/stellex/stellex.zip" The documentation includes the schematics for the controller, YIG datasheets and code in C++
(20-pole header on PLL board) 1_ gnd
THESE ARE NEW AND GUARANTEED GOOD !!
A fellow seller RFPLUS in Australia has workeed with this item and has generously shared his research with me (Thanks, Jon):
