Brown & sharpe 745 v-block & clamp

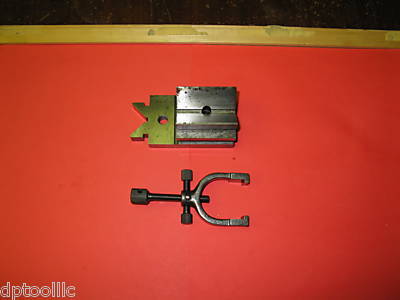

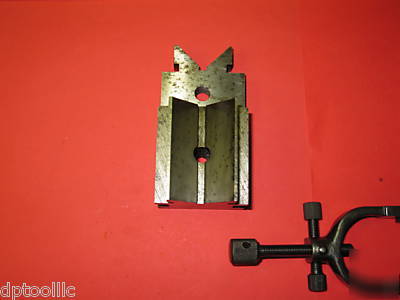

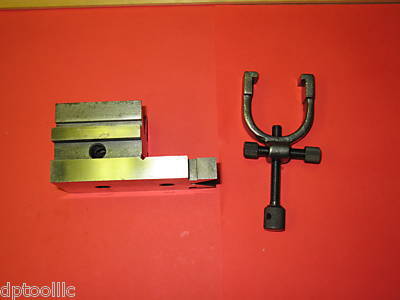

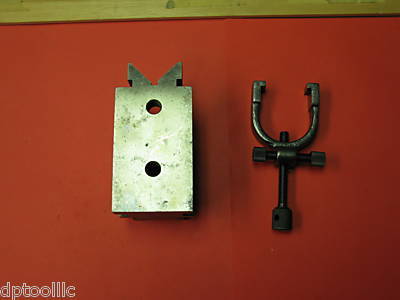

Brown & Sharpe #745 V-Block and Clamp
This is a versatile tool for grinding, milling or drilling. It can be used on its base, end or sides. It is hardened and ground, has two Vees, four tapped holes 3/8-16 UNC, a central hole in the "V" for removing pins for drilling. The forged clamp has adjustable side screw for support.
* Part No. 599-745 (edp #44530)
* Description: V-block and clamp set
* Dimensions: 1-7/8" sq. x 3-5/8" long
* Work Capacity: 1-5/16" diameter approx.
* Accuracy: Surfaces are parallel and square within .0002"
* Accuracy: Long "V" groove is within .0003"
* Accuracy: 90 deg. "V" are +0.00, -.0003"
* Condition: Used in good shape
