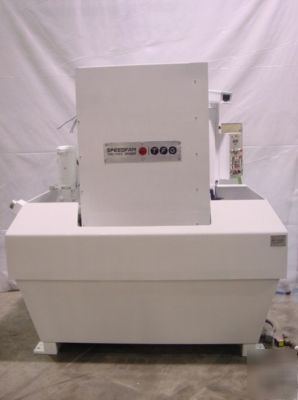

Speedfam 625TFG thru-feed grinder 763M
Speedfam 625TFG Thru-Feed Grinder 7
Parts Capacity, Min / Max: 1/2" Wide x .040" Thick, to- 6" Wide x 6" Thick
Part Length Capacity: 1/2" to Continous Length
Stock Removal Per Pass: Up to 0.100" Max
Grinding Wheel Size & Type: 18" OD. x 4" H. x 10" ID / Std. Insert Nut Disc Wheel
Grinding Wheel Speed: 1200 RPM
Magnetic Chuck Dimension: 6" x 36"
Feed Drive Speed: 0 to 36 FPM.
Feed Drive Continous Belt Size: 6" x 120"

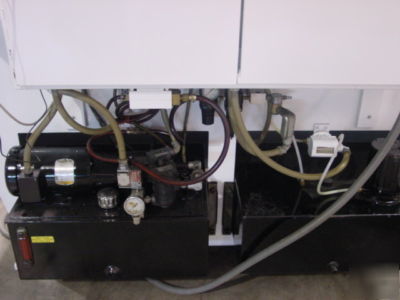

Hydraulic Downfeed to WheelHead Micro Feed from .0001" Per Sec. and Rapid Advance
Maximum Stock Removal: to .100" (One Pass)

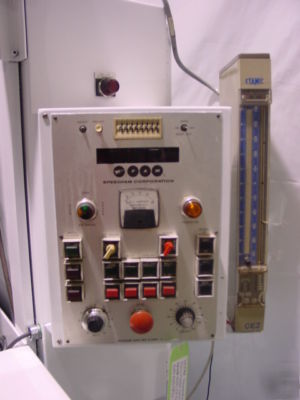

Operator Control With All Functions, Indicator Lights & Meters
Air Gauge Sizing / Continous Automatic Wheel Wear Compensation
Wheel Positioning Readout in .0005" Increments
Variable Electromagnetic Chuck W/ Adjustable Side Guide Bars / Adjustable Height Positioning
Air Supply Required: 80 PSI Thru-put at 7CFPM
Dimensions: L-R 82" x F-B 57" x High W/ Guard Down 85"
