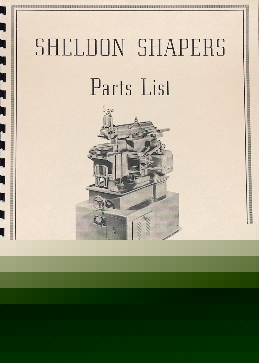

Sheldon vernon 12" metal shaper parts list manual
This is a reproduction, not a photocopy, of an original Sheldon Shaper Parts List Manual. This manual contains information on setting up, lubricating, and operating the shaper. This manual contains feed rates and speeds as well. The manual is broke down very well and very detailed. If you own one of these, this is a must have.
General Information.....................1-3
Adjusting the Ram.........................3
Adjusting the Table.......................3
Table Feeds...............................3
Lubrication...............................3
Tool Head.................................4
Ram and Rocker Arm........................5
Bull Gear.................................6
Back Gear.................................7
Feed Housing..............................8
Swivel Table and Cross Rail...............9
Table Feed Housing.......................10
Motor Drive..............................11
Countershaft.............................12
Base Dimensions..........................13
Descriptions.............................14
Specifications...........................15
