Sencore CM2125 computer monitor analyzer manual probes

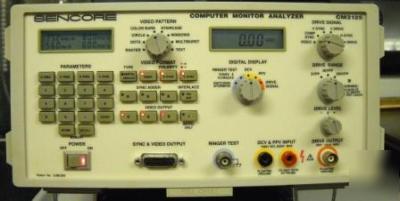

SENCORE CM2125 COMPUTER MONITOR ANALYZER WITH MANUALS AND TEST PROBES. THIS UNIT IS IN GOOD WORKING ORDER AND IN GREAT SHAPE!!!
IF YOU ARE GOING TO RESTORE VINTAGE VIDEO GAMES (DEMAND RISING), OLDER MONITORS AND CURRENT LCD TV / MONITORS WITH COMPUTER INPUT, THIS IS THE UNIT FOR YOU!

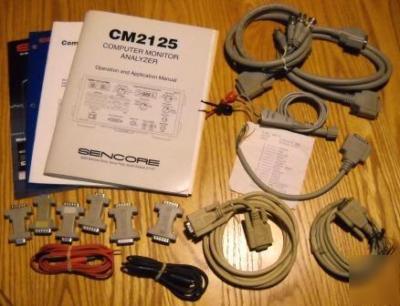

SENCORE CM2125 COMPUTER MONITOR ANALYZER, WITH ALL ORIGINAL MANUALS, TROUBLESHOOTING GUIDE, SCHEMATICS AND SETUP GUIDE. PROBES: DIRECT TEST LEADS 39G221, DVM TEST LEADS 39G264, EXTENSION CABLE 39B271, UNIVERSAL CONNECTOR 39B275, CONNECTOR #1 CGA/MDA/HERCULES MONITORS 39B275, CONNECTOR #2 EGA MONITORS 39B280, CONNECTOR #3 PGC MONITORS 39B281, CONNECTOR #4 VGA/PS2/SVGA/XGA MONITORS 39B274, CONNECTOR #5 APPLE/MACINTOSH MONITORS 39B276, CONNECTOR #5F APPLE/MACINTOSH 39B356, CONNECTOR #6 (6 OR LESSS) BNC MONITORS 39B272, AND HD DB15 EXTENSION CABLE 6', HD DB15 TO BARE WIRES.
The CM2125 includes a fully programmable RGB video and sync generator displaying patterns on computer monitors. Horizontal and vertical scan frequencies, pixel resolutions, and porch and sync times are all programmable so you can service any monitor.
* A complete, easy-to-use, high resolution computer monitor analyzer
* Special sync-locked signal substitutor for pinpointing monitor circuit problems
* Innovative performance pattern generator
* Patented "ringer" and HV multiplier tester that finds defective: - yokes - integrated high voltage transformers (IHVT) - switching transformers
* A fully programmable scan frequency and pixel resolution RGB video generator - bandwidth to 125 MHz and 2048 x 2048 pixels - compatible with TTL, analog, and ECL video types - 70 monitor setup memory locations (43 preprogrammed
* Integrated 2,000 volt DCV and PPV meter eliminates the need for a DVM for complete one-unit troubleshooting
* "Hook-up" adapters available
* Outputs - Bandwidth : 125 MHz. Horizontal pixel resolution: 80-2048 pixels. Vertical pixel resolution: 80-2048 pixels. Horizontal scan frequency: 10-250 kHz. Vertical scan frequency: 10-250 Hz. Output amplitude: TTL, analog, or ECL. Mode selection: Interlaced or non-interlaced. Gun selection: RGBI. Sync adder: RGB. Polarity selection: Video, H-Sync, V-Sync.
* Sync Timing : The CM2125 recognizes common computer monitor formats and automatically adjusts for the correct sync, back porch, and front porch timing. Sync timing parameters can be changed through the front panel.
* Memory : 70 computer monitor setup storage locations (43 preprogrammed).
* Video Patterns : Raster, Dots, Circle/Crosshatch, Color Bars, Multiburst, Staircase, Text, Window, Windows.
* Drive Signals - Signal at zero : Less than 3% of full range. Output at full level, 3 V range: 3 VPP, ? 0.5 V into 100 ohms. 30 V range: 30 VPP, ? 5 V into 100 ohms, 300 V range: 300 VPP, ? 50 V into 10,000 ohms.
* Clipping : None up to 250 VPP typical. Protection from externally applied voltage: ? 500 V (DC + peak AC). Floating ground (-) isolated by ? 500 V (DC + peak AC).
* External VPP - 3 ranges (autoranged) : 0.0 - 19.9 VPP, 20 - 199 VPP, 200 - 1999 VPP. Accuracy: (All) ? 1%, ? 2 counts. Frequency response: 0 - 200 V, 30 Hz to 5 MHz, ? 1 dB from the average value across the band. Input impedance: 15 Megohm.
* External VDC - 3 ranges (autoranged) : 00.00 - 19.99 V DC, 20.0 - 199.9 V DC, 200 - 1999 V DC. Accuracy: (All) ? .2%, ? 2 counts. Input Impedance: (without probe) 15 Megohm.
* Meter Protection : 2000 V DC (DC + peak AC), across the inputs. Maximum voltage between (-) lead and ground: 1500 (DC + peak AC).
* Ringing Test : Dynamic test of coil's Q determined by counting the number of ringing cycles before reaching a preset damping point. The preset damping point is set at 25% of the excitation pulse. The number of cycles is displayed on the digital display and continually updated.
* General - Digital meters : 3 1/2 digit, LCD readout. Digital display: LCD readout. Size: 6" x 12" x 14.3" (15.2 x 29.1 x 38.1 cm) HWD. WEIGHT: 16 pounds (7.3 kg). Power: 105-125 VAC, 60 Hz, 140 W max.
