Project workstation (was an xray generator station)


This was an Industrial Xray Generator and Tube workstation.
Unit as a whole measures 37 1/2in. Tall. 40in. Deep. 30in.wide.

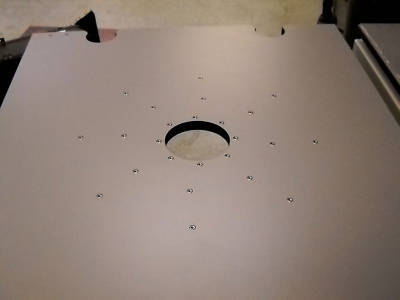

Table top is 39 1/2in. long 30in.wide. Has a hole in the middle about 4 1/4in. There is a star or nebula pattern around it with screw insert holes size M5.

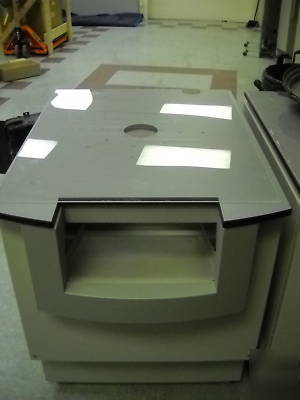

Slot in front is 6 1/2in. Tall. 15 1/2in. wide.

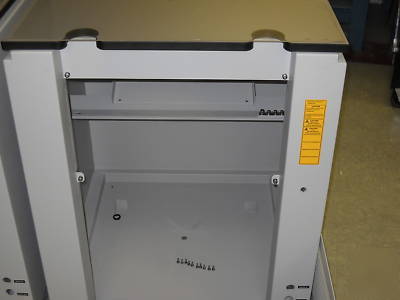

Slanted Shelf 23in. Deep 17 1/2in. wide. At the back there is a groundbus.
Back legs are are hollow 4 1/2in. wide. 3 1/2in. deep. This is where they brought cooling water in.
