Miller 901345 msw-41T air cooled spot welder w/timer
Miller 901345 Msw-41T Air Cooled Spot Welder W/Timer

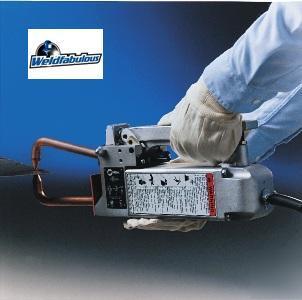

MSW-41 Air Cooled Spot Welder w/Timer
MSW Series lightweight, air-cooled units are portable, easy to operate, and provide a quick and effective means for spot welding mild, galvanized or stainless materials. MSW models weld up to 1/8 in (3.2 mm) total material thickness or two pieces of 20 gauge (1.8 mm) galvanized metal. "T" models include a timer panel with a 0 to 5 second weld timer and power on/off switch, and come with a 10ft. (3m) input power cord and 10ft. (3m)interconnecting cord. The timer panel can be mounted on the optional SWP-2 pedestal, or any other convenient location.
Hand lever locks tongs firmly on material, ensuring positive, accurate fit-up.
Accommodates a wide variety of tongs and tips.
Quick and easy adjustment for material thickness.
Reversible for left- or right-hand operation.
Note: Tongs and tips must be ordered separately. One standard set of tips is supplied with each set of tongs.
* MSW: 6 in (152 mm) 5,550 A
* MSW: 12 in (305 mm) 4,500 A
* MSW: 18 in (457 mm) 3,600 A
* MSW : 1.5 kVA at 50 % Duty Cycle
Work Capacity (combined thickness uncoated mild steel using 6 in [152 mm] tongs)
