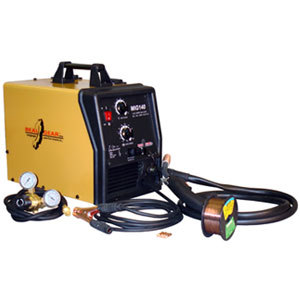

New realgear usa MIG140 mig & flux core 140 amp welder
MIG140 replaces our very popular MIG135 model!
Combination Wire Feeder/MIG and Flux-Cored Welder - Spool Gun Ready!
model# 100140 115volts Ac / 1 single phase / 60hertz / 20 amp input
This user-friendly wire feeder/welder from RealGearUSA is ready to help you make short work of many around-the-home jobs, hobby projects, autobody repairs or farm chores! The MIG140 handles MIG welds on a wide range of materials including mild steel, stainless steel and aluminum. Flux-cored welds on mild steel are a breeze. Achieve outstanding performance on thin sheet metal to medium plate by fine-tuning the arc using the continuous output voltage and wirefeed speed controls. This welder also boasts leading output and arc performance in the 115V machine class. To top it off, we've made it easy to get started virtually everything you need to MIG weld mild steel is included in one convenient package! Just add shielding gas.
Spool Gun Ready, Just add a 100SG Spool Gun and you are ready to weld aluminum. No adapter kits necessary. Just "Plug and Play" Ready To Weld! Includes mild steel MIG wire and adjustable gas regulator and hose kit. Just add shielding gas (sold separately).
CONTINUOUS full-range adjustment of voltage and wire feed speed allows for fine-tuning of the arc and precise control of heat input. That's right, just like machines costing over $600, this machine has CONTINUOUS adjustment of the Voltage (HEAT) control for the weld, not a tap (CLICKER) switch adjustment that can leave you wanting for more!
Capabilities include welding 24 gauge through 5/16" mild steel plate.
Designed to feed .023-.030" (0.6-0.8mm) diameter mild and stainless steel MIG wire and .030-.035" (0.8-0.9mm) diameter flux-cored wire. Welder settings reference chart conveniently located inside wire feed section door makes it easy to set the machine for mild steel welding jobs.
Adjustable brake spindle accommodates both 8" (200mm) diameter and 4" (100mm) diameter spools of wire.
Engineered and built for dependable service and long life expectancy exclusively for RealGearUSA.
"Quick Release" idle pressure arm easily adjusts wire tension for positive wire feeding.
High torque low-RPM drive motor provides extra long life and quiet operation.
Electronic and thermostatic protection from current overload and excessive temperatures.
Dimensions (in) L x W x H : 16 x 9.6 x 14.5
Dimensions (mm) L x W x H : 408 x 244 x 367
- 8'-10" MIG gun and cable assembly with .023/.025" contact tip- 9'-7" work cable and work clamp- 6 ft input power cord with NEMA Type 5-15P plug for connection to standard 115 volt receptacles- Factory installed gas solenoid valve for MIG welding- Adjustable gas regulator and hose for Argon and Argon-carbon dioxide blended gases (regulator requires an adapter (sold separately) for use with CO2 cylinders)- 2 lb. spool .023" (.6mm) "KC-28 Mag Welding" solid wire - mild steel MIG wire- .030" contact tip- .035" contact tip(Shielding gas sold separately)
Wire Feed Speed Range (MM/MIN)
1.5-10.0 millimeters per minute
