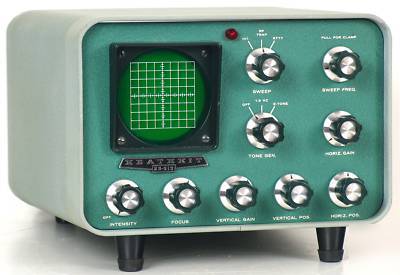

Heathkit sb-610 station monitor scope w/manual working
TX FREQS: 1.8-54 mHz MODES: SSB, CW & AM, RTTY
POWER: 15 Watts to 1,000 Watts
INCLUDES: (1) SB-610 monitor scope with (2) AC cord (3) Manual

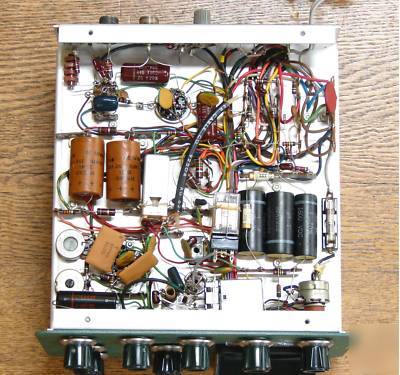

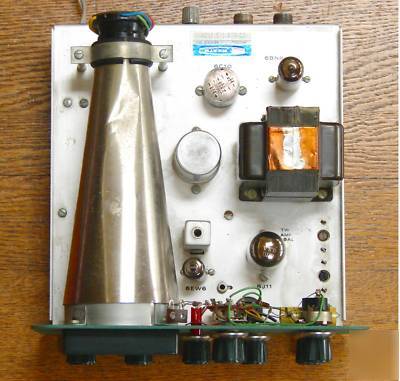

COSMETICS: B VERY NICE overall with (1) GOOD front panel with nice original knobs (2) GOOD case with some blemishes & chips (3) Clean chassis with ID engraving on back panel (4) Manual looks good but writing on front
MALFUNCTIONS: (1) the red power indicator light sometimes flickered during use (2) The phono exciter sockets caused infinite SWR for the exciter. Instead I used one of the SO-239 connectors for the exciter and the other for the antenna and it worked just fine (3) The 2 TONE function was NOT tested.
COMMENTS: Hard to find VINTAGE WORKING SB-610 monitor scope with a nice bright trace!
