Haas automatic digital 5C dividing head s-218-50

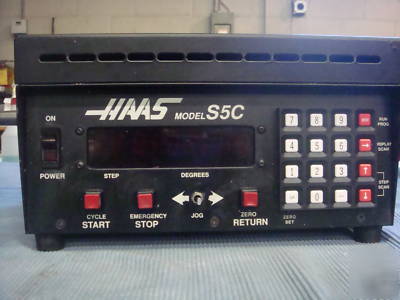

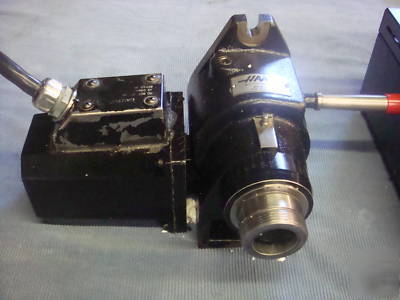

HAAS Automatic Digital Dividing Head S-218-50
* Serial# 194279 Control # 2676
* Spindle Torque : 30 ft. lbs.
* Spindle Runout: 0.0004 T.I.R.
* Spindle Backlash: 45 seconds +/- 5
* Spindle Speeds: .001 deg/sec to 300 deg/sec max

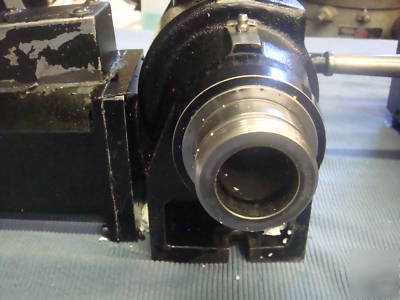

* Spindle Nose Thread: 2 3/16 - 10
* Indexing Accuracy: +/- 15 seconds in one direction
* Repeatability: within 10 seconds
* Motor: .25 H.P. servo motor
* Gear ratio: 72 to 1 self locking worm gear
* Power Requirements: 120 VAC +/- 5 % @ 3 amps
* Spindle Height: 4.000 +/- .001 from spindle center to base
