Pfeiffer mvp 015-2 chemistry lab vacuum diaphragm pump
Dry and oil-free diaphragm pumps with a pumping speed of 6 to 160 l/min. They are ideally suitable for being used as a backing pump for Pfeiffer Vacuum turbopumps and for integration into compact systems.
* Compact diaphragm pump with a pumping speed of up to 15 l/min
* For mains voltage: 90-127 V, 50 Hz, respectively 187-265 V, 60 Hz
* Ideal for applications where a dry and oil-free vacuum is required
* Backing pump for many Pfeiffer Vacuum turbopumps
* For systems and pumping stations
* All areas where an oil-free and dry vacuum and uncontaminated pumping of gases is required
* Ambient temperature 12-40 C
* Exhaust pressure max. 1100 mbar
* Flange (in) G 1/8" elbow union + enclosed hose DN 6 x 1000 mm with a straight union in G 1/4" at the end
* Flange (out) G 1/8" + silencer
* Intake pressure max. 1100 mbar
* Mains requirement: voltage (selectable) 100-115 V ( 10 %) , 50/60 Hz ; 208-236 V ( 10 %), 50/60 Hz
* Nominal pumping speed at 50 Hz 0.9 m3/h
* Nominal pumping speed at 60 Hz 1.1 m3/h
* Rated current absorption 115 V 50/60 Hz, 0.65/1.1 A ; 230 V 50/60 Hz, 0.35/0.55 A
* Rotation speed at 50 Hz 1500 rpm
* Rotation speed at 60 Hz 1800 rpm
* Sound pressure level 52 dB (A)
* Ultimate pressure with gas ballast 4.5 mbar
* Ultimate pressure without gas ballast 3.5 mbar

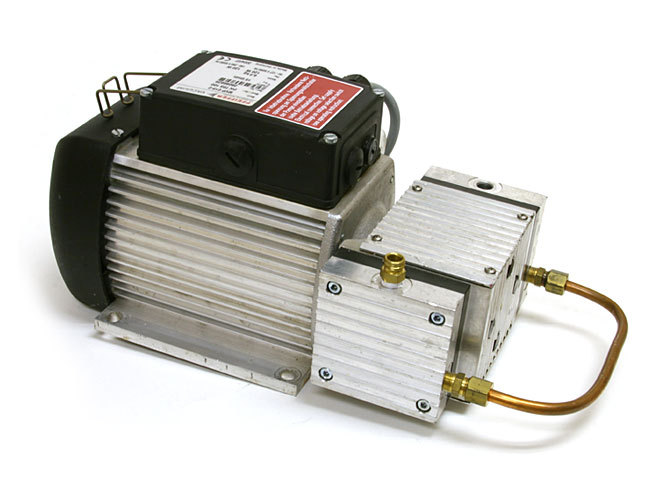

* Pfeiffer MVP 015-2 Diaphragm Pump
