> Cat pump model 3CP1120 4.2 gpm / 2200 psi **free ship**

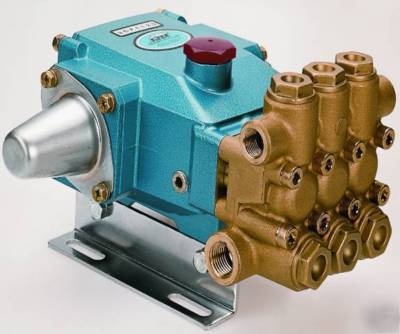

Cat pump model 3CP1120 4.2 gpm / 2200 psi **free ship**
*******DESIGNED FOR BELT DRIVE APPLICATIONS********
Pump Rails and Shaft Cover Not Included
Flow ......................................................................4.2 GPM (16 L/M)
Pressure Range ........................................100 to 2200 PSI (7 to 155 BAR)
RPM...................................................................1725 RPM (1725 RPM)
Stroke .......................................................................0.500" (12.7 mm)
Triplex plunger design delivers smoother liquid flow.
Hi-Pressure Seals are completely lubricated and cooled by
Inlet and discharge valve assemblies interchange for easier
Lubricated Lo-Pressure Seal provides double protection against
Close tolerance concentricity of the ceramic plunger maximizes
Precision design 304 stainless steel valves and seats are hardened
and polished for ultimate seating and extended valve life.
Forged brass manifolds for strength and corrosion resistance.
Special concentric, high-density, polished, solid ceramic plungers
provide a true wear surface and extended seal life.
Specially formulated, CAT PUMP exclusive, Hi-Pressure Seals offer
unmatched performance and seal life.
Die cast aluminum crankcase provides high strength, minimum
weight and precision tolerance control.
Oversized crankshaft bearings with greater capacity mean longer
Wet-end is easily serviced without entering crankcase, requiring less
Valve assemblies are accessible without disturbing piping, for quick
Preset packings mean no packing gland adjustment is necessary,
***We have different model Cat Pumps, as well as different pressure washer units, parts and accessories available. Call Us!!!! CESCO since 1973
toll free ((***)-772-3726). Ask for Derek or Tim.
