Atten AT5011 (a) spectrum analyzer 1050MHZ 5011A

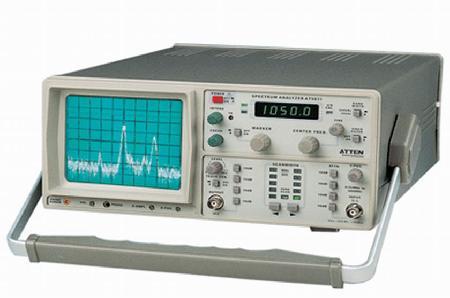

ATTEN AT5011 (A) Spectrum Analyzer 1050MHz 5011A
AT5000 series spectrum analyzer will exceed 1Ghz(0.15~1050MHz) have the glancing or fine adjust center frequency with the 100KHz/grid~100MHz/grid span select, compose the simple frequency-domain. One 4 and 1/2 bit LED display can be selected for the center frequency and marking frequency reading.AT5011+have a tracking generator, this instrument can be used to the pre-research testing. can detect the mobile phone s RF circuit s native signal, intermediate frequency, radiation signal etc. the spectrum analyzer is used to examine and repaired that mobile phone can t going the web, very conveniently and exactly.
* Frequency range: 0.15~1050MHz
* 4 and 1/2 digital displays. (Center frequency, 0.1MHz resolution)
* -100~+13dBm amplitude range, 20MHz, 400MHz center frequency span and 4 KHz video filter.
* Tracking generator (only the ATTEN5011+)
* Output amplitude :+0~-50dBm(50 )
* Frequency range: 0.15 to 1050MHz
* Center frequency display accuracy: 100kHz
* Marker accuracy: 0.1% spans 100 kHz
* Resolution of frequency display: 100 kHz (4.5 digit LE)
* Frequency scans width accuracy: 10%
* Frequency stability: better than 150 kHz/ hour
* IF Bandwidth (-3dB): 400 kHz and 20 kHz;
* Amplitude range: -100dBm to +13dBm
* Screen display range: 80dB (10dB/div.)
* Reference level: -27dBm to +13dBm (in 10dB steps)
* Reference level accuracy: 2dB
* Average noise level: -90dBm (20 kHz Bandwidth)
* Distortion: < -55dBc of 2nd and 3rd harmonic
* Third order intermod.: -70dBc (two signals > 3MHz apar
* Sensitivity: Better than -90dBm
* Log scale fidelity: 2dB (without attn.) 500MHz
* Input attenuator: 0 to 40dB (4 10dB steps)
* Input attenuator accuracy: 1dB/10dB
* Max. Input level: +10dBm, 25V DC (0dB attn.) +20dBm (40dB attn.)
* Frequency scans width: 100 kHz/div. to 100MHz/div, in 1-2-5 steps and 0Hz/div. (Zero Scan)
