New shop fox® M1049 9" x 19" metal lathe ( in box)

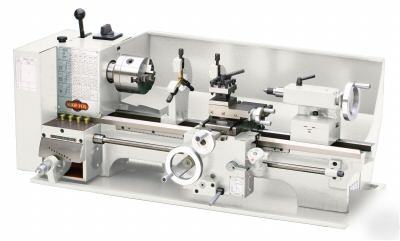

Woodstock International Shop Fox M1049 9" x 19" Metal Lathe
This bench sized lathe has all the features and precision of the larger lathes, but at a fraction of the cost. Why pay for extra capacity when most lathe projects are well within the capability of this great tool. Check out all the features and you'll agree, it's got everything you need.
* 4" 3-jaw chuck with two sets of jaws
* 7-1/4" 4-jaw chuck with reversible jaws
* Includes tool box & tool kit
* Motor: 3/4 HP, 110V, single-phase
* Swing over cross slide: 5"
* Distance between centers: 19"
* Spindle thread 39mm x 4mm pitch
* Range of speeds: 130 - 2,000 RPM
* Lead screw: 9/16" - 16 TPI
* Cross slide travel: 4-1/4"
* Maximum tool size: 3/8" x 3/8"
* Tailstock barrel travel: 1-9/16"
* Tailstock barrel taper: MT #2
* Number of longitudinal feeds: 18
* Range of longitudinal feeds: 0.0023" - 0.013"
* Number of inch threads: 27
* Range of inch threads: 8 - 56 TPI
* Number of metric threads: 11
* Range of metric threads: 0.05 - 3.0mm
* Overall dimensions: 36-1/2"W x 22"L x 15"H
New Optional Stand for M1049 Lathe
M1050 - Stand For 9 X 19 Lathe $149.00
