> Eurotherm TU14 thyristor 4CH 40A 480V phase angle scr
Eurotherm TU14 thyristor 4CH 40A 480V phase angle scr

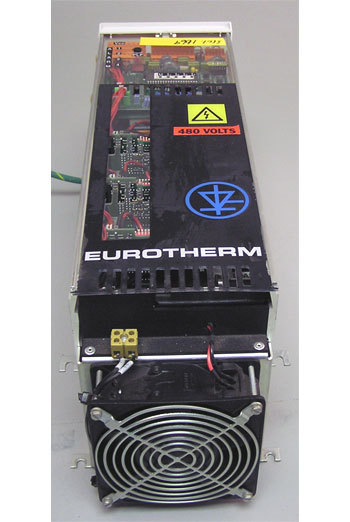

Eurotherm TU14 Thyristor 4Ch 40A 480V Phase Angle SCR
Eurotherm TU 14 SCR Thyristor Four Channel Single Phase Angle Power Control Unit
Model: 4797/TU14/40A/480V/115V/ov5/PA/CCC/EIP/V2/IR/96/NO/96/00
40 Amp per channel: 4 channels
Control & Communication Board
Communication Protocol: Eurotherm
Control Mode: Squared Voltage
Digital Communication: @ 9600 baud
Alarm Contact Type: Relay contact open in alarm state
Eurotherm TU-14 SCR Thyristor 40 Amp Four Channel Phase Angle Power Control Unit
The TU14 thyristor units are designed to control power in high or low
temperature coefficient resistive loads or short wave infrared elements.
The TU14 thyristor unit is composed of 4 independent single-phase control
thyristor channels mounted on a common heat sink. This layout reduces
the cabinet volume required, particularly for installations comprising a high
number of independently controlled loads.
The TU14 thyristor unit controls a maximum current of 40 Amps per channel
at a maximum nominal ( line to line ) voltage of 480V.
Eurotherm TU-14/40A/480V Thyristor Four Channel Phase Angle Power Control Unit
This unit was used for ASM Epsilon E3000 Epi Reactor. The Thyristor Angle
Power units are used to power the IR Lamp Array in the Wafer Process
