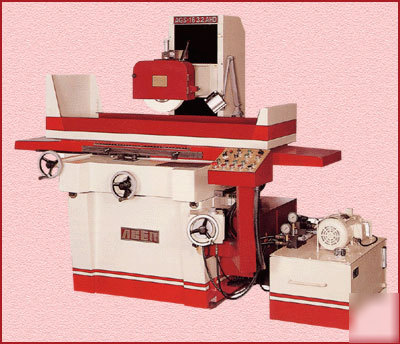

16" w 32" l acer ags-1632AHD surface grinder
16" W 32" L Acer AGS-1632AHD SURFACE GRINDER
16" Width 32" Length Acer AGS-1632AHD SURFACE GRINDER
"NEW" ACER PRECISION SURFACE GRINDER
MODEL: AGS-1632AHD - 3 Axis Automatic
Cartridge type spindle with four class 7 high precision
angular contact ball bearings.
Weigh in at impressive 6,160 lbs.
Dual hydraulic pump system: one each for auto incremental
downfeed & table longitudinal travel.
Enlarged hydraulic tank to cut down thermal effect on
Separate electrical power cabinet; easy maintenance design.
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Diamond Dresser 1 pc. Halogen Light
1 set Tool Box w/Tools 1 set Splash Guard
16"x32" Electro-Magnetic Chuck
OPTIONAL ACCESSORIES: (CALL FOR PRICES):
Walker 16"x32" Electric LBP Chuck w/Control (Fine Pole)
Newall 2-Axis D.R.O. (20"x30" Travel, 0.0001" Resolution)
Sony 2-Axis D.R.O. (20"x30" Travel, 0.00002" Resolution)
