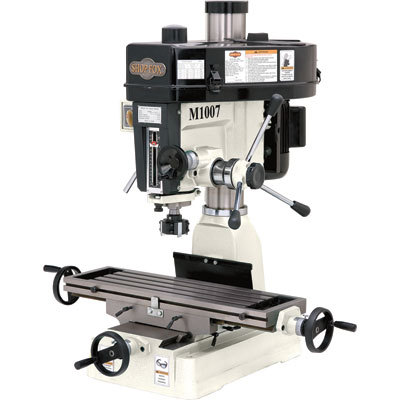

Shop fox benchtop mill drill model# M1007 free shipping
The SHOP FOX Benchtop Mill Drill M1007 is a real work horse, ideal for both fine milling and drilling operations. Install the 3in. face mill (included), fire up the 2 HP 12-speed motor and youll have chips flying in no time. Raise the head a lofty 18in. over the large table and add the 1/2in. drill chuck or R-8 collets for holding a wide array of endmills. HP: 2, Volts: 110/220V pre-wired 110V, Speed (RPM): 120 - 2,580, Speeds (qty.): 12, 360 Head Swivel: No, Draw Bar: Yes, Drilling Capacity (in.): 1 1/4, Chuck Size (in.): 1/2, Max. Spindle Distance (in.): 17 3/4, Worktable L x W (in.): 28 3/4 x 8 1/4, Light Included: No, Stand Included: No, Dimensions L x W x H (in.): 39 3/4 x 42 1/2 x 43 1/3 Clutch-type downfeed mechanism with both rapid and micro-feed quill adjustments Graduations are in inches 3in. face mill Spindle taper: R-8 Spindle travel: 5in. Swing: 15 7/8in. Column size: 4 1/2in. Table travel (longitudinal): 23 1/2in. Table travel (cross): 7in. Range of speeds: 20 - 2500 RPM
