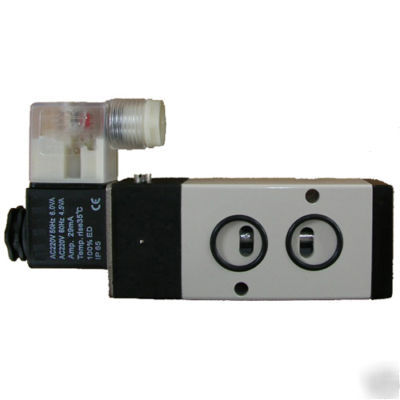

Stc 3 way pneumatic solenoid valve 1/4" npt namur mount
STC 3 way, 2 position solenoid valve, NAMUR mount 1/4" npt. 21-115 psi working pressure. Cv is 1.68. Aluminum body with NBR seals. DIN type electrical connector with manual override and LED. 14 to 140 degrees f operating temperature. Class F coil. Available in 12VDC, 24VDC, 24/60 AC, 120/60 AC or 240/60 AC voltages. Voltage must be specified at the time of order.
