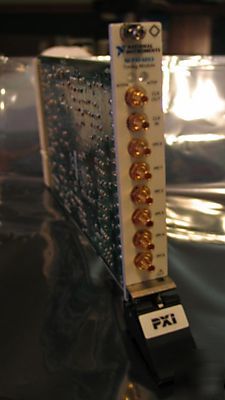

National instruments pxi-6653 timing / synchronization
Timing and Multichassis Synchronization Module
The National Instruments PXI-6653 is a system timing and control module for PXI. The NI PXI-6653 features the ability to drive the PXI start trigger lines, import or export triggers to the PXI backplane, and generate a high-stability OCXO 10 MHz reference clock for instrumentation. With these features, the PXI-6653 can be used to increase accuracy of instruments within a system, or to synchronize multiple PXI systems together.
Onboard routing of clock and trigger signals
High-resolution clock generation, DC to 105 MHz
Onboard high-stability reference OCXO
Star trigger controller for precision low-skew triggering
Synchronize two or more PXI chassis
List Price $2,999 so get a bargain
