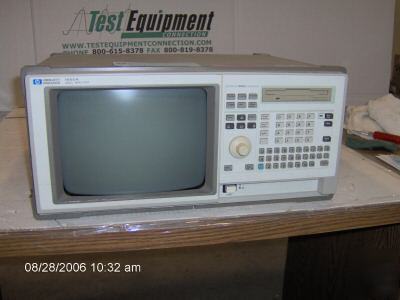

Agilent - hp 1660A logic analyzer
Photobucket LOGIC ANALYZER 136 CHANNELS. 100 MHz speed in state mode, with 2 state clocks/qualifiers. 4K state memory per channel, 8K in half channel modes. Conventional Timing: 250 MHz all channels, 500 MHz, half channels. Transitional Timing: 125 MHz all channels, 250 MHz, half channels. Glitch Timing: 125 MHz half channels. RS-232 and HP-IB interfaces are standard.
