> New * sealed* allen bradley 1756-OB32 /a 1756OB32 08/09
New * sealed* allen bradley 1756-OB32 /a 1756OB32 08/09
Rockwell Automation > PLC & HMI > I/O Products > ControlLogix > 1756-OB32/A
Allen-Bradley 1756-OB32 ControlLogix 10-31V DC Output Module, 32 Points (36 Pin), Series A
Allen-Bradley 1756-OB32 ControlLogix DC Output module, Number of Outputs: 32 (16 points/group); Voltage category: 12/24V DC source; Operating voltage range: 10-31.2V DC; Output delay, off to on: 1 ms; Output delay, on to off: 1 ms; Current draw @ 5.1V: 300 mA; Current draw @ 24V: 2 mA; Power dissipation, max: 4.8 W @ 60 C; Current per point, max: 0.5 A @ 50 C, 0.35 A @ 60 C; Current per module, max: 16 A @ 50 C, 10 A @ 60 C; Isolation voltage: 250V continuous.
Allen-Bradley 1756-OB32 ControlLogix DC Output modules are output modules that provide ON/OFF detection and actuation. Each 1756-OB32 module maintains specific identification information that separates it from all other modules. The 1756OB32 module mounts in a ControlLogix chassis and uses a Removable Terminal Block (RTB): 1756-TBCH or 1756-TBS6H, or an Interface Module (IFM) to connect all field-side wiring.

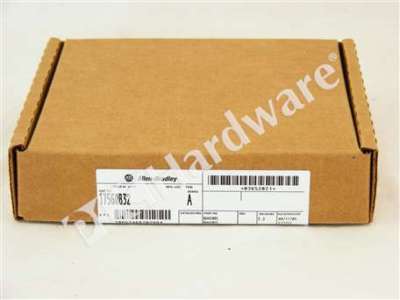

One New Factory Sealed Allen Bradley 1756-OB32 Series A, ControlLogix 10-31V DC Output Module, 32 Points (36 Pin).
The unit is Series A, S/W F/W Rev. 3.2, Pkg Date 08/17/09.
