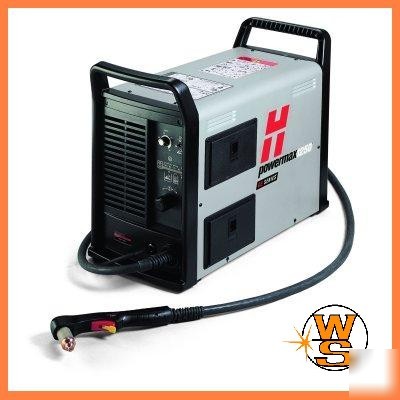

HYPERTHERM POWERMAX 1250 PLASMA CUTTER (087008) *NEW*
This ad is for a brand new Hypertherm Powermax 1250 plasma cutter with T80 hand torch. This is not a used or refurbished unit. This is not a used or refurbished unit. we are an authorized Hypertherm distributor. You can call us at 1-(***)-360-9353 to speak with a consultant if you have any questions regarding this listing or the specifications of the machine.
Do you have a old plasma cutter you want to trade in for this unit. Send us a message and learn how you could qualify for an additional discount for this unit.
* Free pair of Leather Cutting Gloves
* Free pair of Safety glasses
* (2) Extra Genuine Hypertherm Electrodes
* (2) Extra Genuine Hypertherm Nozzles
* Free choice of one Hypertherm Hats !
* ( Camo ) ( Black ) ( Blk / Red )
A New Generation of Plasma Cutting Technology
Recommended capacity: metals to 7/8 inch at cutting speeds over 20 inches per minute.
Maximum capacity: metals to 1 1/8 inch at cutting speeds over 10 inches per minute.
Severance capacity: rough cut on metals up to 1 1/2 at low speed.
The Power supply: the Heart of the Machine
Advanced, intelligent technology gives the Powermax 1250 the ability to cut with greater speed, quality, and efficiency.
* 80-amp, 12-kilowatt output provides ample power for clean, quick cutting.
* Auto-voltage runs on voltages from 200 to 600 volts, 1- to 3-phase, without the need for manual rewiring.
* New Boost Conditioner circuit compensates for input voltage variation.
* Advanced, digitally controlled inverter design delivers continually adjustable constant current output from 20 to 60 amps, permitting high quality cuts over a wide range of metal thicknesses.
* An active electronic pilot arc controller for cutting expanded metal or grating.
* New gouging setting for easier operation and faster metal removal.
* CNC/robotic interface is standard on all units, allowing automated control and rapid changeover to mechanized operation.
The Torch: Intelligent Design Combines Performance, Durability, Comfort, and Safety
The Powermax 1250 features Hypertherm's patented T80 safety trigger torch which delivers outstanding cut performance, reliability, and operator comfort.
* The longest consumable life in the industry, and we'll prove it. Patented HyLife electrodes last longer than ordinary designs.
* Patented Dual-threshold pilot circuit significantly reduces nozzle wear by boosting pilot current precisely when needed.
* Patented nozzle shield lets you drag the torch on the work piece at full output, without damaging consumables, and protects the nozzle from molten metal spray and double arcing.
* Post flow cooling reduces torch stress.
* Hypertherm's patented Coaxial-assist jet design boosts cutting speed as much as 20% over conventional designs.
* Hypertherm's ETR (Easy Torch Removal) system allows for easy switching between manual and mechanized torches. It also features a strain relief designed for durability.
* Hypertherm's patented safety trigger protects against accidental starts. Interlocks deactivate the torch when the consumable parts are removed, using a durable mechanical contact.
* No breakable ceramic parts.
* Patented "blow-back" technology provides a pilot arc without excessive high-frequency interface.
* Consumables for gouging, extended-nozzle cutting, pipe saddle cutting and other applications.
The Powermax 1250 is designed for heavy use under the harshest conditions
* Mechanical and electrical designs are validated through aggressive, accelerated testing.
* New fan-on-demand feature minimizes dust ingestion.
* Chemically cross-linked torch cable jacket provides improved resistance to molten spray and cut-through.
* CSA/NRTL comply with the highest safety standards.
* IP23CS compliance for resistance to water damage.
* The Powermax 1250 is backed by a full three-year power supply warranty and a one-year torch warranty. No parts excluded. Examine competitive policies closely.
