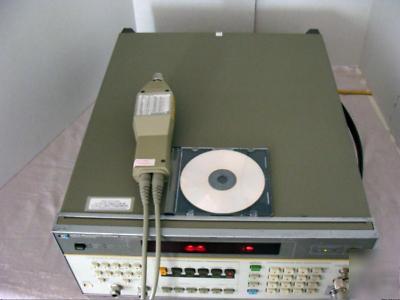

Hp - agilent 8902A measuring receiver w/ 11722A sensor

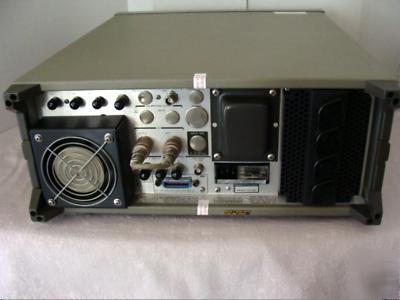

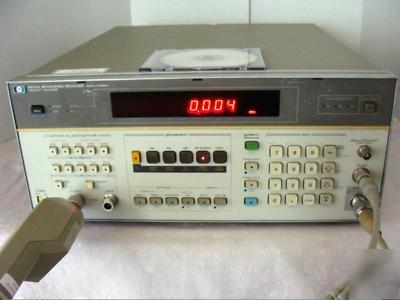

The HP Agilent 8902a Measuring Reciever measures levels from +30 dBm to -127 dBm. It accurately measures AM, FM and M, including residuals and incidentals, with a single keystroke. The HP - Agilent 8902A Measuring Receiver combines the capabilities of a frequency counter, distortion analyzer, modulation meter, attenuation receiver, and power meter to give complete, accurate characterization of cw and modulated signals in the 150 kHz to 1300 MHz frequency range. It accurately measures AM, FM, and Phase modulation and recovers the modulation signal. It measures the RF frequency, RF power, modulation frequency, and distortion at 400 Hz and 1 kHz. Post detection filters allow the user to accurately characterize the modulation. A built-in AM/FM Calibrator permits quick confidence checks of measurement accuracy. AM and FM accuracy is 1%. A built-in 50 MHz power reference ensures that the 11722A Power Sensor makes accurate RF power measurements.
PRODUCT FEATURES: *** Frequency Range 150 kHz to 1300 MHz *** RF power: digital power meter accuracy *** Tuned RF level: 0 to -127 dBm dynamic range *** Carrier noise: AM and phase noise measurements to -140 dBc/Hz *** AM and FM: 1% accuracy; Phi-M:3% accuracy *** RF frequency: 1 Hz resolution *** Audio: level, frequency, and distortion.

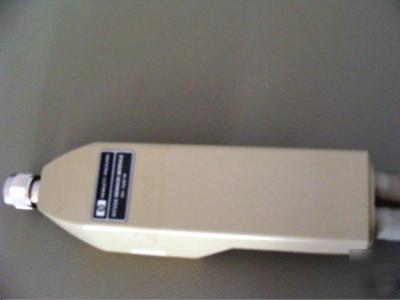

HP - AGILENT 11722A Sensor Module was designed for use with the HP 8901B Modulation Analyzer and HP 8902A Measuring Receiver. HP 11722A contains a silicon monolithic thermocouple as a power sensing element. With the HP 11722A Sensor Module, you get all the performance of the HP 8901B or HP 8902A, plus superb power measurement accuracy, at a single connector. You can characterize a signal without switching back and forth between the power sensor and the analyzer's RF input.
SPECS: *** Frequency Range: 100 kHz to 2.6 GHz *** Power Range: +30 dBm (1 watt) to -20 dBm (10 W) *** Input SWR (connected to an HP 8901B or 8901A): <1.15, for RF power measurements *** Power sensor linearity: +2%, -4%; +30 dBm to +20 dBm. Negligible deviation, levels <+20 dBm *** Calibration factors: Each HP 11722A Sensor Module is individually calibrated. The calibration factors are printed on the 11722A Sensor Module for easy reference.
For more information on both items: http:// /vt/assets/pdfs/hp_8902a.PDF
