Blackbox 4X1 compact vga switch
****@mccominc.com (***)-879-9590 Chester, New Jersey

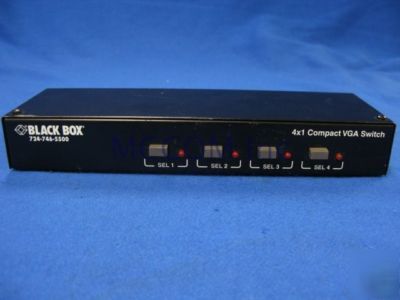

Blackbox 4x1 VGA Switch AC506A Blackbox 4x1 VGA Switch AC506A
* Control manually by pushing a button or via an RS-232 control device (serial cable is included).
* Or set the switch up to cycle between video sources automatically.
* Buffered video output protects the signal integrity.
* Automode detects active inputs and switches to them automatically. You assign port priority!
* You can also blank and unblank an output via a serial port command.
* LED indicates selected input source.
* Fits into tight spaces and withstands heavy use.
The 4 x 1 Compact VGA Switch from Black Box goes much farther than ordinary video switches in both the distance and resolution it supports.
This solid-state, electronic switch not only uses boosters to drive VGA video signals up to 150 feet (45.7 m), it also offers a crisp resolution of up to 1600 x 1200.
Use the switch, for instance, in a conference room where four laptop users can take turns projecting their screen images onto a single big-screen VGA monitor seen by all. It s also useful anywhere you need to use fewer monitors for displaying video sources.
Control switching via an attached RS-232 device (serial control cable is included), or set it up to scan between VGA inputs at certain time intervals or display VGA inputs based on their priority. You can also blank output from one source or switch manually.
Technical Specifications for 4 x 1 Compact VGA Switch: Distance (Maximum) 150 ft. (45.7 m) at XGA
Resolution (Maximum) 1600 x 1200
Connectors Video input: (4) HD15 F;
Power Input: 110 VAC, 60 Hz;
Output: 6 VDC at 300 mA center positive
Please contact us if you would like more pictures of the item.
We sell all items with an accurate representation. Any known defects will be noted and pointed out.
* For all items over $250.00 in Value a Signature is REQUIRED upon receipt of the item.
