Pid digital temperature controller thermometer 400 °c

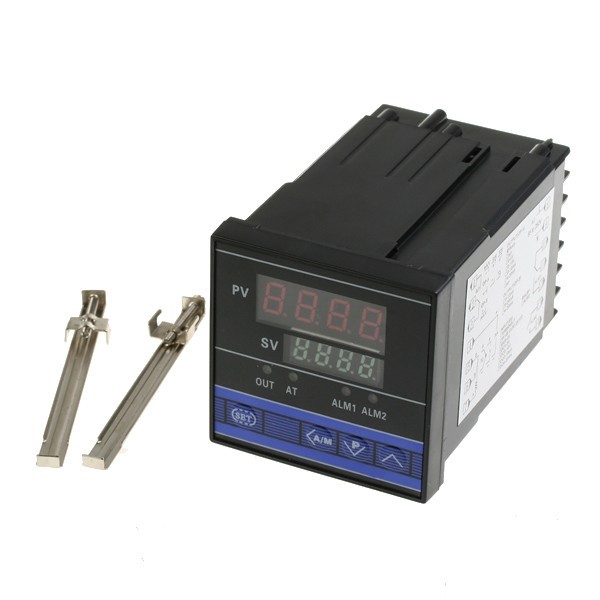

PID Digital Temperature Controller Thermometer 400 C
The digital PID temperature controller is brand new and boxed and comes with instructions, connection diagrams and fixing brackets
* Temperature control range: 0 ~ 400 C
* Thermocouple: E, J, K, S, R
* Thermal resistance: Cu50, Pt100
* Standard current: 0 - 10mA, 4 - 20mA, 0 - 5V
* Accuracy: < 1%FS + 1 word
* Cold-end compensation tolerance: < 2 C, temperature co-efficient < 0.05 C
* Differentiate rate: 1 C or 0.1 C
* Sampling cycle: 3 times per second
* Alarm type: high limit, low limit, upper high limit and below lower limit
* Alarm output: relay contact point: AC250V 3A (resistance)
* Control method: PID, state and manual controls
* Control output: relay contact point: AC250V 3A (resistance), SSR 0-24V
* Start pulse over zero: optical couple control silicon output 1A 600V
* Start pulse on transport: optical couple control silicon output 1A 600V
* Manual function: replace output through keyboard
* Power supply voltage: AC 85 ~ 260V, 50/60Hz
* Operating environment: 0 ~ 50 , air pressure 80 - 160kPa, relative humidity 45 ~ 85% RH
* Dimensions: 72 x 72 x 111mm
* Cut out dimensions: 67 x 67 x 100mm
