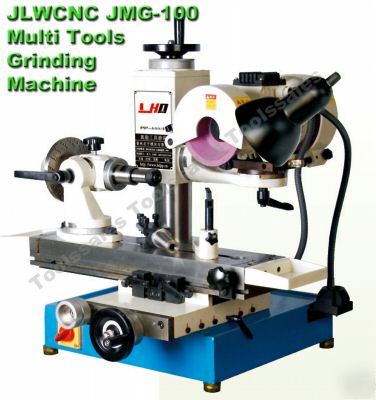

Mill lathe tools multi function sharp grinding machine
Mill lathe tools multi function sharp grinding machine
Multi flute mill lathe gears Cutting tools grinding machine
Table movement by high quality linear ball slider rail ensure the stable and easy smooth operation.
Grinding motor is able too rotate all round 360 deg. Both end able to mount different grinding wheel provide quick change to different material grinding.
Solid FC30 machine steel casting construction, high stability and accuracy.
Maximum grinding wheel speed 40m/s
Machine ( cooperation with various optional grinding head) will be able to grinding or sharp the following cutting tools,
Large size heavy cutting tool
Circular and planed groove tools
Profile face and many more custom tools
It s hard to descript the operation over the text, following 2 link is the video to show detail operation, the advance design of various head allow grinding wide range of tools and parts with the machine

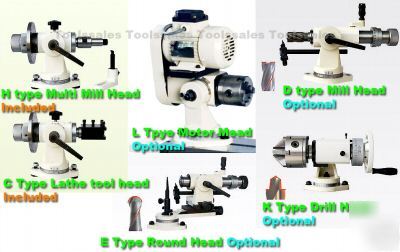

Please see below link for the grinding in operation, the video show various grinding head which enable to grind wide range of tools and parts. The machine comes with the standard head, other head are optional. Please contact us for detail information.
Working area horizontal travel operative distance 300mm
Working area longitudinal travel operative distance 150mm
Grind Wheel elevating distance 120mm
Rotation angle of Grind wheel 360 deg
Grinding wheel size 150mm x 40mm x 32mm
Grinding wheel speed (RPM) 2800 RPM / 3600 RPM
Motor Horse Power 3/4HP 110V/220V/380V
Machine Net/Gross Weight 160/168kg
Over All package Size 700 x 630 x 630mm
