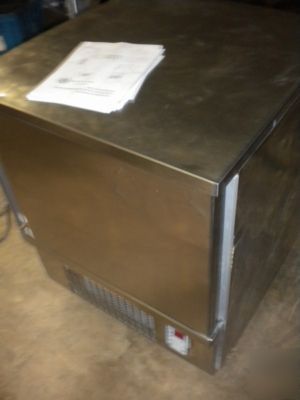

Beverage air used commercial blast chiller freezer BAC5
Beverage Air Used Commercial Blast Chiller Freezer BAC5
This item could be used in any restaurant, bar, diner, or commercial kitchen. Some of the standard features and benefits of this item include:
As listed form the MAnufacturer is features below///
* Exterior: AISI 304 18-10 stainless steel front, side, rear, and top panels. Interior: AISI 304 18-10 stainless steel.
* Satin scotchbrite finish on door; side panels, control panel and top. Polished interior.
* Without working top section.
* One-piece construction with rounded internal corners. CFC-free expanded polyurethane insulation, 2.36 thickness, density 38kg/ m3.

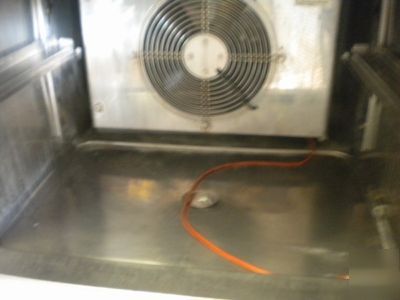

* Hinged fan cover for easy access to the evaporator and fan during cleaning.
* Diamond-polished inner floor for improved hygiene. Drain outlet for easy cleaning of interior.
* Useful for 12 x 20 x 2.5 pans.

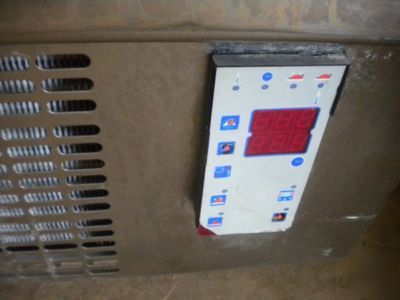

* Digital control board with p.c.b.:
* LCD display 16 columns and 2 stripes to visualize the operating phases;
* Blast chilling with variable cycle progression;
* 20 pre-set blast-chilling cycles;
* Opportunity to modulate the ventilation speed combined to one of the pre-set chamber temperatures;
* Visualization of the temperature in the chamber, from the temperature at the hart of the product or that of the time during the blast chilling/freezing cycle, of the ventilation speed in the chamber;
* Automatic setting of the refrigerating phase at the end of the cycle.

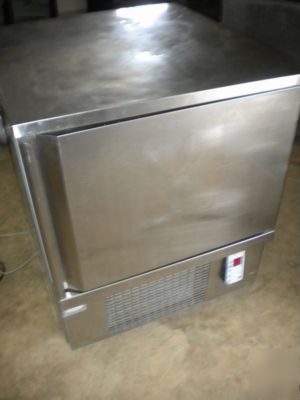

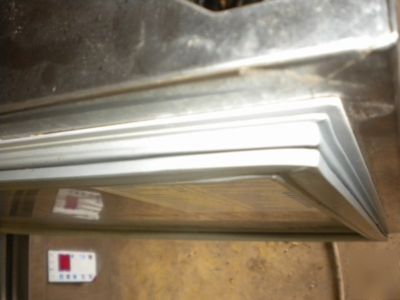

* Self-closing door. Full height outer stainless steel handle.

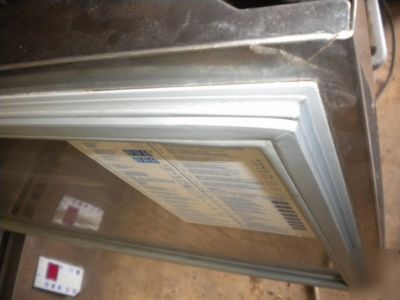

* Depth with door open 54.1 . Easily-removable magnetic gasket. Door frame heating element.
* Inner dimensions mm 24.4 (L) x 23.3 (P) x 15.4 (H). Interior capacity 88 litres.
* Stainless steel feet with plastic heat-resistant pads, height adjustable from 4.5 to 6.5 .
* Standard supplied product core probe with L-shaped handle for easy extraction.
* Cooling unit at evaporation temperature +14 F and condensation temperature +128 F rated at 692 Watt with hermetic compressor.

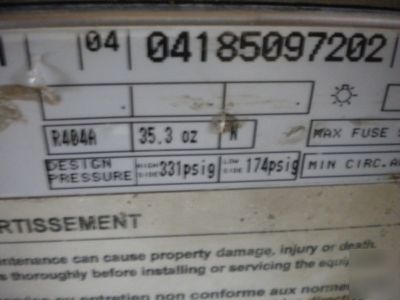

* Refrigerant gas: R404A. Air cooling. Production per cycle: 40 lbs. From +194 F to +37.4 F in 90 minutes.
* Preset inner cell temperature +14 F. Evaporation temperature control with thermostat valve.
* Internal operation: ventilated cell. Copper/aluminum rustproofed evaporator. Manual defrosting.
* All controls and parts accessible from the upper part of the appliance.
