2795 leblond 15" x 54" lathe servo shift 1-17/32" hole

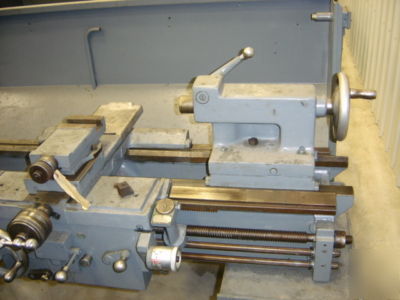

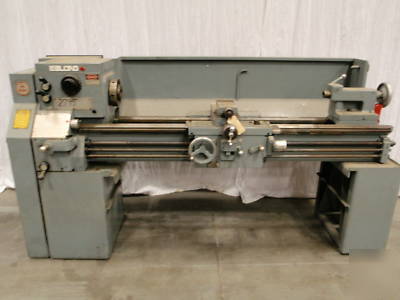

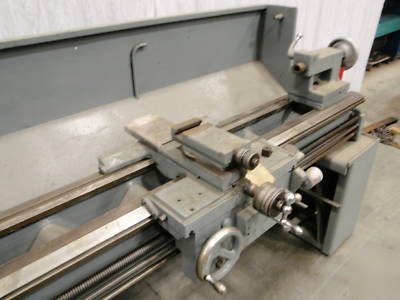

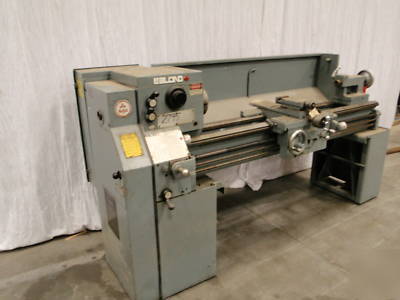

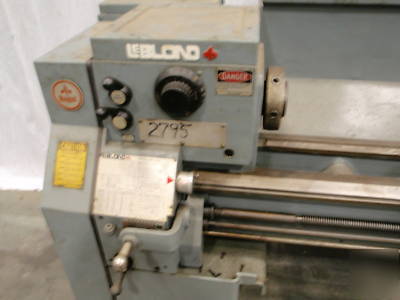

LE BLOND REGAL 15" SERVO SHIFT GEARED HEAD LATHE
Swing over bed and carriage wings 15 " Swing over cross slide 9 " Center distance 54" Spindle speeds (12) 30-1800 rpm Spindle center #3MT Spindle hole diameter 1-17/32" Bed width and depth 12-3/16" x 10 " Feed changes (48) .002" to .120" Thread changes (48) 4 to 224 tpi Motor 7 hp Approximate floor space 66" x 40" Approximate weight 2,300 lbs Machine is equipped with English and Metric threading, power feed, and tailstock.
