Strainsert portable battery powered load indicator

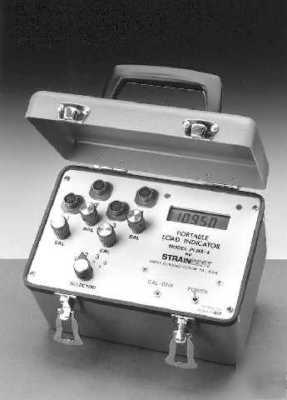

LOAD INDICATOR STRAINSERT PLNX-4 PERFECT WORKING CONDITIONS.
http:// /pdfs/instr-portable-multi-channel.pdf
The PLNX- line of indicators are 1, 2, 3, and 4 channel versions with the same basic circuitry and performance
features as the Model PLN-D2. Additional features include different instrument cases, and switching provisions
for one to four channels which accommodate up to four transducers.
Indication is direct. Resolution is from 1 pound to 1000 pounds, depending on full scale transducer capacity.
Alternate display units are available.
Simple operation. For normal use only three controls are involved: Turn on the power switch, select the channel,
set the no load balance or tare reading to zero, and begin reading applied loads.
A shunt calibration function provides a quick test of transducer and indicator integrity.
The readout system is fully contained in a rugged and durable aluminum alloy case.
Power is provided by a set of rechargeable batteries. Batteries and a recharger with a retractable 110 Vac or
220 Vac power cord, as specified, are included within the housing. In multichannel units, excitation voltage is
maintained on all transducers independent of channel switching.
Battery power allows complete freedom of use, and
provides average of 5 10 hours continuous operation,
depending on transducer resistance. A ratiometric
measuring technique prevents degrading system accuracy
A visual display (Flashing : ) signals that recharging
Recharging is accomplished by withdrawing the recharge
cord from its sealed compartment and plugging into a
standard 110 Vac or 220 Vac, 60 or 50 Hz wall receptacle.
220 Vac applications will require plug adapters to be
recharged overnight and can be left on charge indefinitely.
Readings can be obtained while the batteries are
on charge . The instrument is effectively usable on either
Displayed directly in pounds up to 199900
Displayed in kips above 199900 pounds.
Transducer Capacity Dummy Zero s Pounds Per Count
Multi-Channel Portable Load Indicators
Display: 3-1/2 digit, one or two dummy 0 s
Display Size: 1/2 inch Liquid Crystal Display
Zero Balance Range: 20% full scale (FS)
Calibration Check: Preset to approximately 80% F.S.
Nickel Cadmium Batteries and Recharger included.
Transducer cable connector: PT06A-10-6P(SR)
Visual Display of Low Battery, Over Range, Polarity.
82 w w w . s t r a i n s e r t . c o m 6 1 0 - 8 2 5 - 3 3 1 0
PLNX-2 (25,000 POUND, 2-mv/V, 350 Ohms)
Model PLNX-233-1 (Set of 8 Nickel Cadmium C 1.2V)
Note: When ordering specify full scale load capacity, units of measure, input sensitivity, and bridge resistance.
