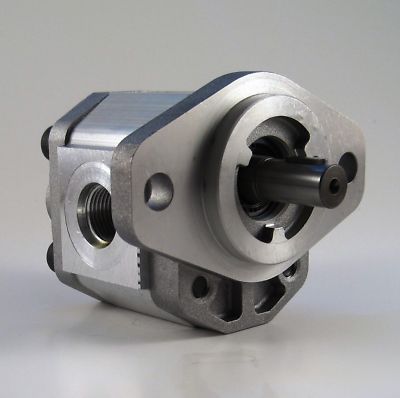

Hydraulic gear pump : 2 cc/rev., sae aa, 1/2" shaft-key
* Flow Rate @ 1800 RPM: 0.85 GPM (=3.2 LPM) / @ 2600 RPM: 1.22 GPM (=4.6 LPM)
* Rated Working Pressure: 3,000 psi / Intermittent Pressure : 3,300 psi
* Input Port Size: SAE 8 (=3/4-16 UNF-2B) / Output Port Size : SAE 6 (=9/16-18 UNF-2B)
Compact and lightweight aluminum gear pump featuring 12 tooth low noise and low ripple gear design. All parts are manufactured in the ISO certified state-of-art-facility in Korea. This high quality gear pump is used by world-class original equipment manufacturers. 3 things to check to ensure proper installation(1) Mount : Make sure that it is SAE AA 2 bolt type flange(2) Shaft : 1/2" diameter with a SAE square key 1/8 x 5/8(3) Rotation : CW (Clockwise looking at the shaft end, R) Rotation is reversible if you have basic skill to disassemble and assemble the pump.
