> Omega hhp-sg handheld indicator transducer

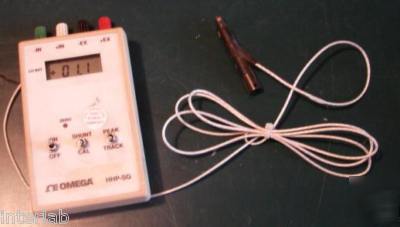

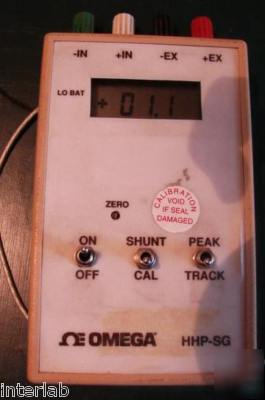

Omega hhp-sg handheld indicator transducer
Good Condition, Omega HHP-SG handheld indicator Transducer , Working Serial Number 255985
Transducer Excitation Voltage: 2.46 Vdc Minimum
Transducer Resistance: 350 Ohms minimum
Input Signal Sensitivity: 0.5 to 4.0 mV/V for full scale indication
Peak Detector Bleed-Of: Less than 0.01% per second
Display Type: 3 1 /2 digit LCD (plus dummy zero)
Conversion Rate: 3 readings per second
Power: 9 volt battery (included), low battery indication provided
Battery Life: 15 hours minimum with 350 Ohm bridge transducer
http:// /Pressure/pdf/HHP-SG.pdf
