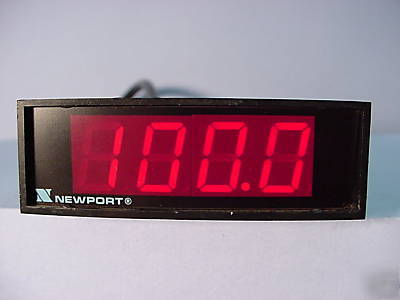

Newport Digital Panel DC Volt Meter
Model 205-A Input .2, 2, 20, 200 DCV (Jumper Selectable)
Model 205-A is a low-cost 3 1/2 digit DC voltmeter with a full-size 0.56 in (14.2 mm), red LED display, yet housed in a small 3/64 DIN case with a 24 x 72 mm bezel. The case fits into a standard 3/64 DIN cutout, 0.87 x 2.68 in (22.2 x 68 mm), and requires a depth of less than 4.72 in (120 mm) behind the panel, including plug-in screw-clamp connectors (standard).
The 205-A offers 99.9% accuracy and jumper-selectable DC voltage ranges of 199.9 mV, 1.999 V, 19.99 V and 199.9 V. The input is true differential, with excellent common mode rejection (CMR).
* Miniature DIN case with 24 x 72 mm bezel
* Full-size, 0.56 in (14.2 mm) LED display
* 1,999-count display span True-differential input
* Removable screw-clamp cable connector
* Automatic zero and polarity
Configuration: Differential, Bipolar
AC voltage: 24, 100, 115, 230 V ac 15%
CMR, SIG LO to PWR GND: 120 dB, DC to 60 Hz
CMV, SIG LO to PWR GND: 1500 Vp per HV test, 354 Vp per IEC spacing
Maximum error: 0.05% of reading 1 count
Span tempco: 0.01% of reading/ C
Warmup to rated accuracy: 30 min
Technique: Dual-slope, average-value
Signal integration period: 100 ms
Decimal points: Three position jumper-selectable behind lens
Overrange indication: Three least-significant digits blank
Operating temperature: 0 to 60 C
Storage temperature: 40 to 85 C
Relative humidity: 95% at 40 C (non-condensing)
Dimensions: Newport DIN2472-100 (3/64 DIN) (see Mechanical section for drawings)
Bezel (standard): 0.94 x 2.83 in (24 x 72 mm)
Bezel (with TP2 adapter): 0.98 x 2.96 in (25 x 75 mm)
Panel cutout: 0.87 x 2.68 in (22.2 x 68 mm)
Depth behind bezel (with connector): 4.72 in (120 mm)
Case material: 94V-1 UL-rated Noryl SE-1
Unit has been tested and accuracy Verified.
* NOTE: The Range is selectable by an internal jumper.
* Please let me know if you want this setup for 200mV, 2V , 20V or 200V
