> 15W 12V dc 1.3A regulated switching power supply [K026]
15W 12V dc 1.3A regulated switching power supply [K026]

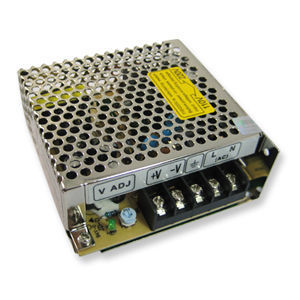

15W 12V DC 1.3A Regulated Switching Power Supply [K026]
K026-HS-15W-12V-13A.jpg picture by hpstore2008
200ms, 100ms, 30ms at full load
85 132VAC/170 264VAC selected by switch 240 370VDC
COLD START 15A/115VAC 30A/230VAC
Protection type: Fold back current limiting, recovers automatically after fault condition is removed
-10 +60 (Refer to outputload derating curve)
-20 +85% ,10 95%RH non-condemnsing
10 500Hz, 2G 10min./1cycle, period for 60min. Each alongX,Y,Z axes
1/p-0/p:1.5KVAC 1/P-FG:1.5KVAC 0/P-FG:0.5KVAC
1/p-0/P, 1/P-FG,0/P-FG:100M Ohms/500VDC
Design refer to FCC Part15 J Conduction ClassB
522.1K hrs min. MIL-HDBK-217F(25 )
1.All paramenters NOT specially mentioned are measured at 230VAC input, ratedload and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance:includes set up tolerance, line regulation and load regulation.
s15-1.jpg S-15 1 picture by hpstore2008
s15-2.jpg S-15 2 picture by hpstore2008
