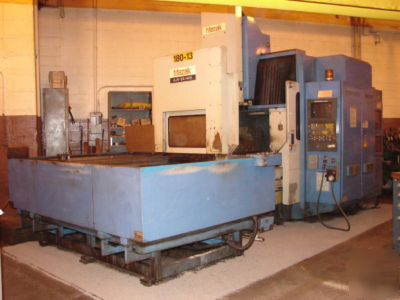

Mazak dbl column bridge type cnc vert machining center
#AJV25/405 MAZAK DOUBLE COLUMN BRIDGE TYPE CNC
DUAL-PALLET SHUTTLE TYPE VERTICAL MACHINING CENTER
New 1988, Serial No 75981, Model AJV25/405
Mazak Mazatrol #M32 CNC Control
(2) 21.5" x 40" Pallets Dual Shuttle System
60-Tool Automatic Tool Changer
TEMPORARY CATALOGUE SPECIFICATIONS:
Pallet Overall Size, W x L.............. 21.5" x 40"
Table Load Capacity, Maximum............ 1760 LBS
X-Axis Table Longitudinal Travel........ 39.37"
Y-Axis Cross Slide Travel............... 20"
Z-Axis Spindle-Head Vertical Travel..... 18.11"
Spindle Taper........................... #50 CAT
Spindle Speeds, Range................... 35 to 5000 RPM
Feed Rates Variable, (X&Y Axis')........ 708 IPM
Feed Rates Variable, (Z-Axis)........... 708 IPM
Rapid Traverse (X-Axis)................. 945 IPM
Rapid Traverse (Y-Axis)................. 945 IPM
Rapid Traverse (Z-Axis)................. 708 IPM
Spindle Motor, Horsepower............... 25 HP
PRICE: F.O.B. OUR WAREHOUSE............. $14,500.00
