Rupprecht patashnick teom 1400 particulate mass monitor
This listing is for a continious particulate mass monitor system.
NOTE: I have approximately ten additional pictures of this system. Please email me if you would like to view them.
* Make: Rupprecht & Patashnick Co Inc (now part of Thermo Electron / Thermo-Fisher Scientific)

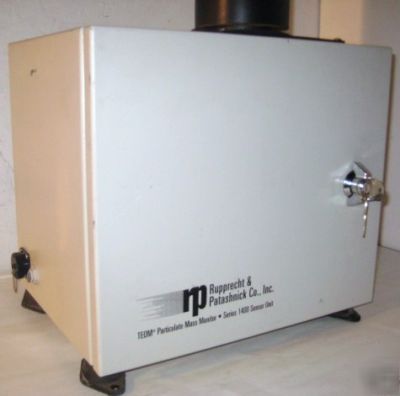

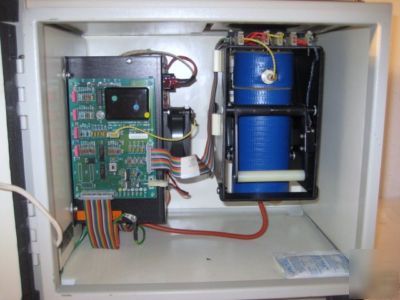

* (2) TEOM Particulate Mass Monitors - Series 1400 Sensor Units

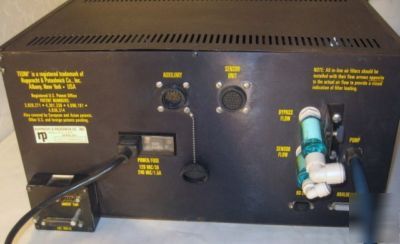

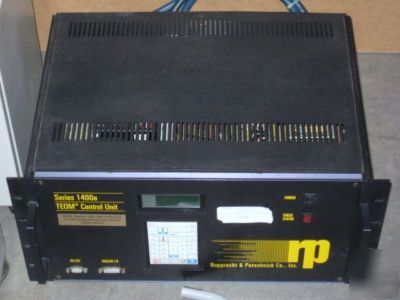

* (1) TEOM Control Unit - Series 1400A - Last Calibrated 9/28/05

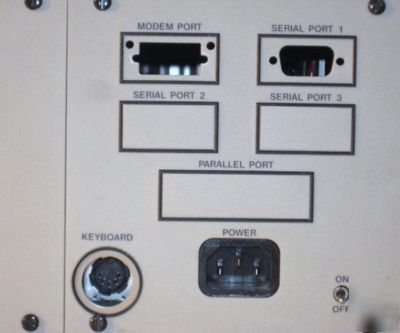

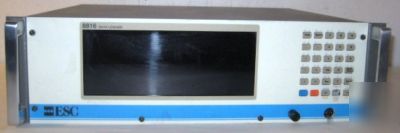

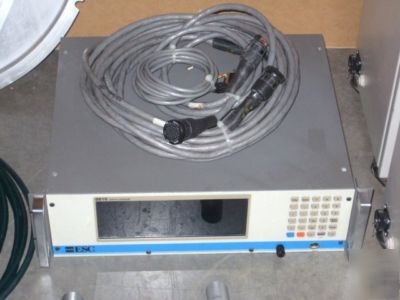

* (1) ESC (Environmental Systems Corp) 8816 Data Logger (datalogger) Assembly - Model/Part # 5-112-0000

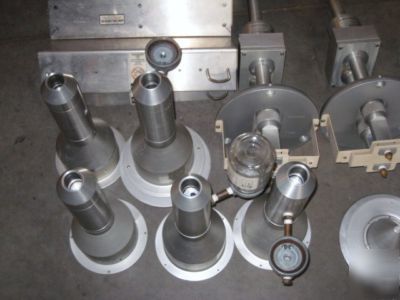

* (4) Graseby Anderson / Rupprecht & Pataschnick PM-10 Inlet Assembly - Part # 57-00596

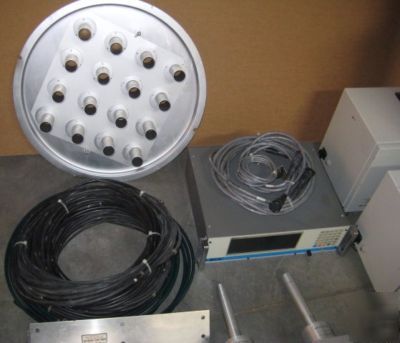

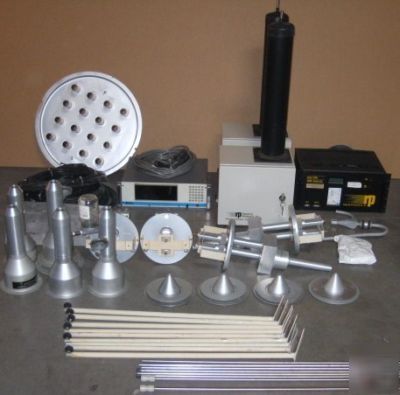

* (+++) Also includes all pictured cables, tubes, stands and misc. support equipment.
* Includes all/only items pictured. Please view pictures to make sure everything you want/need is included.
Here is some information from the manufacturer. Please note that these are specs for the "1400ab" unit. The system being sold is a "1400a". Some specifications may vary a little. Please call or email if you have any specific questions.
The time resolution of the Series 1400ab Monitor allows users to identify episodes and determine trends in real time. When used in conjunction with meteorological data or information from gasous criterial pollutant analyzers, the instrument can provide vital information in the study of human health effects.
Other applications of time-sensitive data include source identification and control, short-term compliance monitoring, emergency response, forensic investigations and numerical modeling.
* Direct measurement of particulate mass collected on a filter using Thermo Scientific tapered element oscillating microbalance (TEOM) technology.
* Unsurpassed precison, mass and time resolution. Mass concentration data reported in micrograms per cubic meter at standard averaging times of 10 min, 30 min, 1, 8, and 24 hours.
* Direct audit and calibration procedures of mass measurement and systems using NIST-traceable standards.
* Available with a choice of sample inlets for PM-10, PM-2.5, PM-1 or TSP monitoring.
* Exposed collection filters can be analyzed for heavy metals using standard laboratory techniques such as AA and ICP.
* Conditional sampling by time, particulate concentration, meteorological inputs or other variables using the optional ACCU System.
* Active volumetric flow control maintains a constant volumetric flow rate by incorporating ambient pressure and temperature sensors.
* Industry-leading input/output capabilities:
* Menu-driven user interface
* Seven analog input channels for receiving external data with conversion to engineering units.
* Vector-based averaging for wind speed and direction.
* Internal data logging of system and external information.
* Three user-defined analog output channels and two contact closure alarm circuits.
* Advanced RS232 support for the retrieval of current and logged information.
* Complete Outdoor Enclosure provides flexible siting capabilities with air conditioning for summer conditions and heating for the wintertime.
Certifications and Approvals:
* U.S. EPA certification EQPM-1090-079 for continuous PM-10 particulate monitoring, and is a USEPA-recognized correlated acceptable continuous monitor for continuous PM-2.5 measurements. TEOM instrumentation also has German TUV approval for TSP and PM-10 measurements.
* ETL (UL- and CSA-equivalent) approval, CE designation.
* Measurement Range : 0 to 5,000,000 g/m3
* Precision : 1.5 g/m3 (1-hour ave), 0.5 g/m3 (24-hour ave)
* Minimum Detectable Limit : 10 nanograms, 0.06 g/m3 (1-hour ave)
* Accuracy for Mass Measurement : 0.75%
* Main Flow Rate : 0.5 to 4 l/min
* Auxiliary Flow Rate : 2.0 to 18.0 l/min
* Data Storage : Up to 40 weeks of hourly mass concentration data
* Data Output and Input : 2-way RS-232 Communication, 3 User-Defined Analog Outputs, 7 Averaged Analog Inputs
* Operating Range : Sampled Air -40 to 60 C. Control and Sensor Units must be weather protected within the range of 2 - 40 C
* Power Requirement : Sensor and Control Units and Sampling Pump: 120 VAC/60Hz: 5.25A; 240 VAC/50 Hz, 3.25A
* Dimensions, Sensor Unit : Base W: 14" (36cm) x D: 11" (28 cm) x H: 13" (33 cm). Heated Air Inlet H: 26" (66 cm) x Dia 3.5" (9 cm)
* Dimensions, Control Unit : W: 17" (43cm) x D: 18" (46 cm) x H: 9" (22 cm)
* Weight : Sensor Unit: 40 lb (18 kg), Control Unit: 32 lb (15 kg)
For further information, please visit Thermo's product page at http:// /com/cda/product/detail/1,,10122682,00.html
This is used and in good condition. It may need minor maintenance and/or proper installation/certification to get it completely operation. But it's otherwise guaranteed to be in proper, working order.
