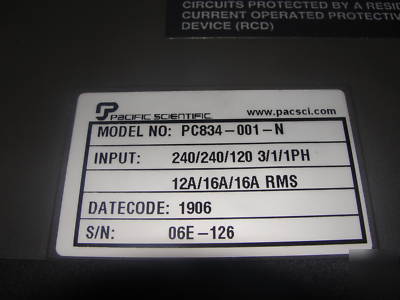

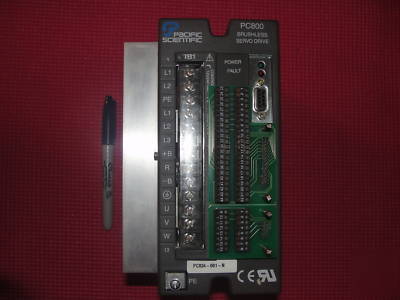

PC834001N pacific scientific servo drive


PC800 Series Digital Brushless Servo Drive
Estimated Retail Price: $1,834.00
Cost effective small servos with the best lead time in the industry.
Pacific Scientific's new PC800 servo drive is engineered to help your bottom line. It offers high performance and broad functionality in a compact package at an economical price, with one more key advantage - the shortest lead time in the industry.
The PC800 matches the high performance of all Pacific Scientific drives. It features Pacific Scientific's patented DRDC (Digital Resolver to Digital Conversion) algorithm, and a 400 Hz velocity-loop bandwidth - the highest in the industry. Yet its all-digital servo capabilities come in a package with a 40% smaller footprint than equivalent older drives, making it ideal for applications where space is at a premium.
Your bottom line also benefits because the PC800 is UL, cUL and CE compliant, and meets the CE low voltage directive without requiring additional isolation.
When speed and efficiency are paramount, the PC800 servo drive delivers.
The PC800 Series is the next generation of Pacific Scientific's all digital brushless servo drives. It provides everything you've come to expect from a Pacific Scientific drive in a significantly smaller package, with just-in-time product availability.
Like all Pacific Scientific drives, the PC800 can accept either step and direction or analog commands. Motion profiling is standard - the PC800's internal profile generator allows pre-set index moves. With the highest velocity-loop bandwidth in the industry - 400 Hz - you get simplified drive set-up and tuning, even for complicated mechanical systems. Advanced tuning also allows systems to settle quickly.
Intuitive on-line drive configuration is part of the PC800 family's 800Tools software suite. Make parameter selections or changes with a few clicks of the mouse. Saved selections go into non-volatile memory within the drive.
The powerful digital oscilloscope function within 800Tools greatly streamlines the start-up of your application. Using the oscilloscope, you can combine the PC800's auto-tuning feature with the diagnostic graphic representation of the servo's parameters. You'll be up and running in no time!
The new PC800 shares similar functionality and power output with the SC/SCE900 drives shown, but look at the size difference!
This table contains recommended pairings of Pacific Scientific PC800 Drives with PMA and S series brushless servomotors. In matching the PC800 family with its brushless servomotors, Pacific Scientific engineers analyzed real-world motion control applications and optimized the windings for maximum system performance. The combination of Pacific Scientific motors and drives results in higher performance and efficiency, delivering more - from .5 to 48.5 Nm - continuous usable torque in your application.
The NEW PC832 Digital Brushless Servo Drive
* 2.7A RMS continuous, 5.3A RMS peak output power
* Standard analog and digital interfaces
* Step/Direction Digital interface-position or velocity control
* Preset moves using an internal profile generator
* 10V Analog interface-velocity or torque control
* Quadrature encoder digital interface-electronic gearing follower
* RS-232/485 serial interface - allows programming with an IBM-compatible PC
* Windows -based 800Tools configuration software simplifies set-up:
* Digital oscilloscope feature quickly shows drive function graphically
* Intuitive parameter configuration - be up and running in minutes
* Advanced digital tuning for reduced settling time - no pots to tweak
* All system and application parameters are set in software and can be saved in EEPROM
* Automated diagnostic routine reduces troubleshooting time
* Rugged, PLC-like digital and analog I/O maximize application flexibility:
* Six optically-isolated inputs
* Three optically-isolated outputs
* One relay output, 30V dc @ 1A
* Differential 10V analog input
* Single-end analog input, 5V dc
* Two analog outputs, 5V dc
* Encoder quadrature output - up to 16,384 PPR
* Encoder quadrature input (Step/Direction)
* +5V dc @ 200 mA user output
* +24V dc @ 100 mA power supply for optically-isolated inputs
* All connections on front-easy access to clearly marked connectors
* Optional Terminal Block Adapter speeds connections even further
* Separate logic supply input keeps logic power working when bus power is disconnected
* Extensive protection circuits and diagnostics to ease set-up
* 400 Hz velocity loop bandwidth
* Inaudible, high frequency, Digital PWM sine wave current control
* IGBT Power stage - more efficient, less audible noise
* Electronic assembly equipment
* Semiconductor wafer processing equipment
* UL recognized - 508C (Type R) - file #E137798
* Meets IEC Vibration Standard, #68-2-6
* Models CE Compliant: EMC standard EB61800-3 and safety standard EN50178.
PacSci Motors Complete the package
Links to PC800 Software and Documentation
PC830 Tools Help This is an online version of the 800Tools configuration software utility help file. Find answers to most PC800/PCE800 programming, set-up and technical questions. PC800/PCE800 wiring diagrams and fault code diagnostics are included.
