Rf 31 milldrill mill drill milling machine
RF - 31 Mill Drill if you are looking for a high quality low cost mill this is the one for you . Great for home or shop.
* Table Size = 28 3/4" x 8 1/4"
* Table Travel = Longitudinal (18 1/8"), Cross (6 1/4")
* T- Slots =4, size= 5/8" Width
* Spindle/Quill Travel = 5 1/8"
* Spindle Taper = R8 Spindle/ Quill Diameter = 3"
* Spindle to Table (max.)=18"
* Spindle to Column (max.) = 5 1/2"
* Diameter of Column = 4 1/2"
* Machine Dimensions = 42" H X 36" W X 36" D
* Motor & Electrics = 2 HP , 110/220 volt, 1 phase
* Floor Space Needed = 60" W X 50" D
* Capacity = Drilling Steel (1 1/4") Drilling Cast Iron (1 1/2") End Mill (3/4"), Face Mill (4")
* 12 Spindle Speeds - 120,190,230,285,370,440,770,1040,1220,1450, 1800,2500

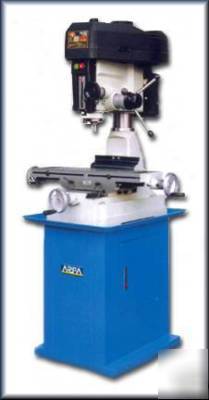

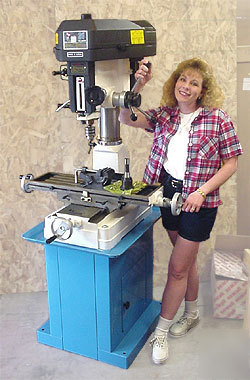

Shown with optional Mill Drill Stand add for $200.
Drill Chuck, Face Mill, Swivel Vice
3 1/2" angle drill press vise, 1/2" drill chuck w/key, drill chuck arbor R8/JT6, 3" face mill cutter, shell mill arbor, forward/reverse drum switch, and draw bar.
