RLC2 remote level control - ramp
RLC2 Remote Level Control - Ramp
* Remote Level Control Panel
* 10 segment Visual Level Display
* Multiple Control / Indication Locations
* Premium Quality Remote Panel
* Professional Aesthetic Appearance
The RLC2 is designed to directly interface with RDL control modules, such as the STICK ON series ST RG1 Ramp Generator, or RACK UP series RU VCA2 Digitally Controlled Audio Attenuator. The RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU VCA2, pushing both buttons on the RLC2 simultaneously causes the level to return to the PRESET level on the RU VCA2.
UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA
Mounts in US electrical box or RDL international wall boxes WB 1U, WB 2U; decorative plate available separately
GROUND REFERENCED, 24 to 33 Vdc @ 75 mA
Ambient Operating Environment:

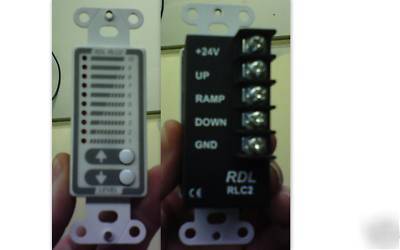

*Attached photo is an actual photo of the listed item*
