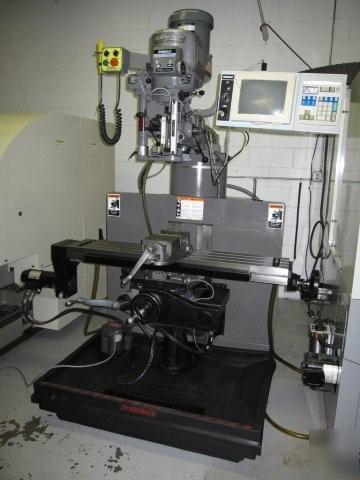

Bridgeport 3-axis cnc toolroom milling machine
1998 BRIDGEPORT 3-AXIS CNC TOOLROOM MILLING MACHINE
MODEL: E-Z TRACK FULL 3AXES CNC PLUS HANDWHEELS
TABLE SIZE .................... 9" X 48"
X-AXIS TRAVEL ................. 30"
Y-AXIS TRAVEL ................. 12"
Z-AXIS TRAVEL ................. 5"
KNEE TRAVEL ................... 16"
RAM TRAVEL .................... 12"
MAXIMUM TABLE LOAD ............ 300 LBS
SPINDLE TAPER ................. R-8
SPINDLE SPEEDS ................ 60-4200 RPM
SPINDLE DIAMETER .............. 1-7/8"
QUILL DIAMETER ................ 3-3/8"
MACHINE DIMENSIONS ............ 8' X 7' X 6.5" H
MACHINE WEIGHT ................ 2800 LBS
* BRIDGEPORT DX-32 CONTROL (FULL 3-AXIS, PC BASED, CANNED CYCLES
USER DEFINABLE MACROS, IN MANUAL MODE THREE AXIS DIGITAL READOUT
X, Y & Z BALLS SCREWS AND SERVO MOTORS
CONDITION: EXCELLEN INSPECT UNDER POWER
See additional photos on our web site: http://uen.hsix.com/q/webinv/015870=x,942
