Itt pure-flo 1½"+½" tri-clover sanitary diaphragm valve

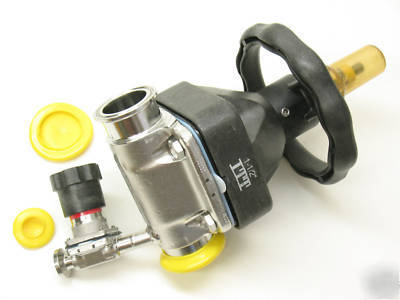

ITEM: ITT PURE-FLO 1-1/2" Tri-Clamp Ends (Tri-Clover Type) Sanitary Diaphragm Valve (Tag missing but appears to be Model #1.5-F-419-9-4-TM-963S) with Manual Actuator, w/ an ITT BIO-TEK 1/2" Tri-Clamp End Sanitary Drain Valve (Tag missing but appears to be a Model# .5-8-419-9-4-H-17).
MAIN VALVE MODEL NUMBER NOMENCLATURE:
F = 316LSS Forged Body, Pressure Rating CWP150
9 = Interior Finish: Ra 11 Microinch Max. Sanitary Polish
4 = Exterior Finish: Ra 25 Microinch Max., Welds Removed
TM = Two Piece Modified PTFE Diaphragm (FDA Compliant) w/ EPDM Backing Cushion, -30 to 350 F (-34-177 C)
963S = PAS (Polyarylsulfone) Plastic Manual Bonnet, Rising Handwheel w/ Travel Stop, Sealed Bonnet Type (option, suffix "S" - threaded SS plug on the bonnet that provides secondary containment)
BIOTEK DRAIN VALVE MODEL NUMBER NOMENCLATURE:
.5 = 1/2" OD Tube Size (1/2" Tri-Clamp Ends), Valve Bore ID: 3/8"/0.36"/9.14mm
8 = Bio-Tek 316LSS Forged Body, Pressure Rating CWP150
4 = Exterior Finish: Ra 25 Microinch Max. Sanitary Polish, Welds Removed
H = EPDM (FDA) Type #17 Diaphragm (Bio-Tek standard)
17 = Sealed ITT Bio-Tek Bonnet w/ Rising Handwheel
CONDITION: USED in EXCELLENT CONDITION, cracking on the base of the yellow plastic cap at the top of the handwheel.
SOURCE: From the carefully decommissioned equipment of a large biopharmaceutical manufacturing facility.
SELLS ELSEWHERE FOR APPROX.: $1,000 New.
