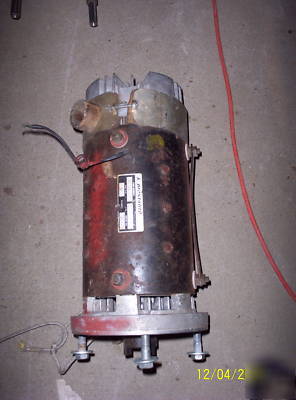

Prestolite 20 hp 96 vdc series wound electric motor
The original motor was for the Jet Electrica 007, based on the Dodge Omni 024 fastback converted by Jet Industries in Austin, Texas. I bought the motor in 1984 to convert my '69 MGB-GT into electric. The project died when I drove ~0.5 miles and blew the main transistor; that and graduating from college the next summer.
Manufacturer: Prestolite Motors of Toledo, OH USA
Dimensions: 16.25" long x 7"OD
Face dimensions: 8.25" OD with 7.25" bolt diameter, 4places
Shaft: 1.125"OD x 1.125"L with 0.1875" keyway
Motor came with jumper across A1 & S1. Connect terminals to A2 & S2 for motor to spin in one direction. Remove old jumper and place new jumper across A1 & S2 and terminal across A2 & S1 for motor to spin in opposite direction.
Series wound motor develop termendous torque at low rpm, but will spin themselves to bits if no load on shaft!!!
Motor has some rust on surface, but was in great working order when pull from vehicle in 1987.
Shaft spins freely. Motor has been stored indoors since pulled from vehicle.
