29" swg 60" cc acer 2960GH dynamic series engine lathe,

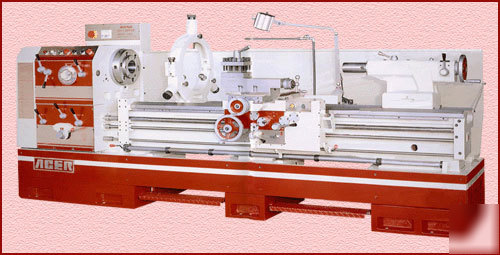

29" Swg 60" cc Acer 2960GH Dynamic Series ENGINE LATHE,
29" Swing 60" Centers Acer 2960GH Dynamic Series ENGINE LATHE, 15 HP, D1-11 Camlock w/4-1/8" Spin
Swing Over Gap (gap type only): 37-25/32"
Swing Over Cross Slide: 20-1/2"
Spindle Nose: ASA 1-11 or D1-11
Type of Spindle Nose: 108 x 1:12
Spindle Speeds: 25-1200 RPM (12 steps)
Metric Pitch Threads: 0.5 - 14mm/pitch (31 kinds)
Inch Pitch Threads: 2-56 TPI (45 kinds)
Module Pitch Threads (optional): 0.25-7 MP (23 kinds)
Diametral Pitch Threads (optional): 4-112 DP (43 kinds)
Range of Longitudinal Feeds: 0.0012" - 0.0287"/rev. 0.03 -.73mm/rev.
Range of Cross Feeds: 0.0004"-0.0118"/rev. 0.01 - .03mm/rev.
Rapid Traverse Motor: 1/2 hp (optional)
Packing Dimensions: 125.5" x 50" x 74"
Ampere meter for indicating power consumption.
Magnetic multiple-disc clutches in the headstock are used for
efficient starting and reversing the spindle.
12 speeds range from 25 to 1,200 RPM.
One of the outside gears on the gear box is designed with a safety
ring to protect it from damage.
Drip-proof 15 HP spindle motor.
Magnetic disc brake with foot pedal allows for rapid control of the
Hardened & ground bedways at Rockwell C 55 .
Electro-trochoid pump forces lubrication oil to all running parts
Handwheel with direct inch/metric reading micro-collar.
Precision ground cross slideways.
Saddle-lock device for heavy cutting.
Rapid four directional travel.
Safety clutched and longitudinal lead screw.
4 TPI and oil bathed longintudinal lead screw.
Forward/stop/reverse lever with safety device.
