> Altronix AL1024ULX power supply
Altronix AL1024ULX power supply

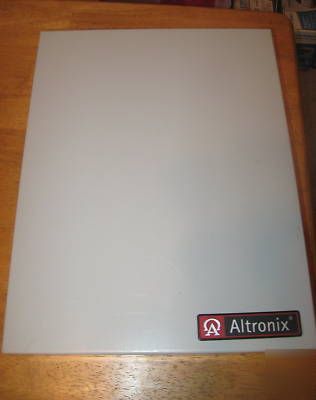

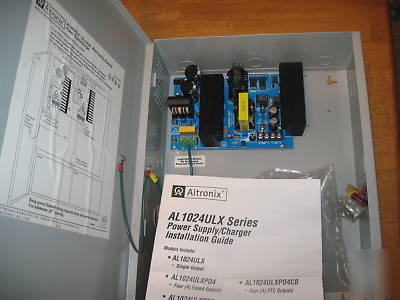

This power supply appears to be new, but is not in the original box. Documentation and hardware/lock is in place. All knockouts are still in place.
Model AL1024ULX power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications.
UL Listed for Access Control Systems (UL294),
CSFM - California State Fire Marshal Approved.
10 amp of continuous supply current for Access Control applications
8 amp of continuous supply current, 10 amp during alarm for
Maximum charge current 3.6 amp.
Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
Accommodates up to two (2) 12VDC/12AH batteries.
Dimensions: 15.5 H x 12.23 W x 4.5 D.
1.125" and 1.375" combination knockouts.
